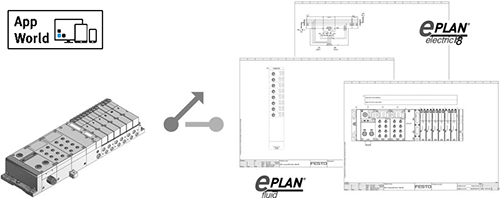

Design and document circuit diagrams quickly and easily: with the CPX macro library - for use within the E-CAD software application EPLAN Electric P8.
Now also available: CPX macro library for EPLAN P8
Advantages of the new CPX macros:
- All CPX components available
- More than 200 intelligent predefined module configurations with connection logics and function templates suitable
- CPX configurations can get bulit by drag & drop
- Festo order code for modules in the EPLAN articles database disposable
Example CPX configuration:- 50E-F06GCQSEX-Z
- Module 1 = F06GCQS
- Module 2 = EX
Your advantage: Both modules are available in the EPLAN articles database and useable within only few clicks, see video
- 50E-F06GCQSEX-Z
- Detailed product informations in several languages
- Explicit 2D illustrations
- And many more
.jpg)
CPX macros for EPLAN
Following EPLAN projects with all macros are available for you to download. Created with EPLAN 8 from version 2.0.
Alternatively you are able to download these macros as well via our online product catalogue.
Please click on the following links to get further information:
How to download and use single EPLAN macros
How to download and use EPLAN macro packages
.jpg)
Pneumatic circuit diagrams
Eplan and Festo work together in the creation of pneumatic circuit diagrams: the EPLAN Fluid engineering tool is linked to the Festo xDKI catalogue on DVD. This import function can be used to transfer all the data and pneumatic circuit symbols for Festo products relevant to parts lists.
The new platform incorporates all CAx solutions from Eplan Software & Service. EPLAN Electric P8 is also built on this platform. The direct, unrestricted linkage to fluid engineering. The same database and object orientation permit online links between the different document types. Changes made in one place are immediately available for all relevant functions, no matter whether in electrical or fluid engineering.
Project content
Single components and modules for the control of valve terminals from Festo for EPLAN P8. The available PDF files can get used for circuit creations for other E-CAD systems.
Realised valve terminal types
CPX (Electrical periphery and fieldbus nodes)
Electrical project planning and engineering
Structural overview
- With single module supply
- With order code
Circuit diagrams
- Equipment connection diagram
- Terminal diagram
- Wiring diagram ("PLC overview“)
Control box overview
- With order codes
- With scale 1:1
Article data
Contains the material master data for compilation of parts lists.
The following formats are available:
- With predefined module configurations with connection logics
- With function templates
- In 6 languages (German, US English, Spanish, French, Korean, Chinese)
