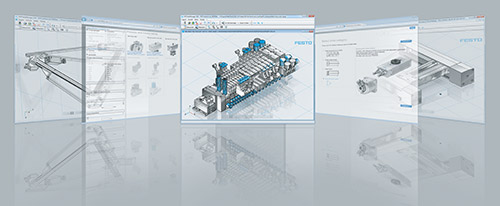

Find suitable products for your application with Festo engineering tools
Avoid complex reality tests and use our engineering tools to simulate your application.
The right product in just a few steps:
- Enter the general technical conditions
- Start the simulation
- Evaluate the simulation results
- Select the appropriate products from a list of suggestions
You can find all available software in the Festo online catalogue.
To get an overview on all engineering tools, visit the Support Portal.
The Festo engineering tools are available online for the following products:
Selection aids
- Pneumatic drives
- Compressed air preparation units
- Grippers
- Shock absorbers
Sizing software
- Feed separators HPV
Calculation tools
- Air consumption of cylinders
- Mass moment of inertia
Pneumatic dimensioning
Pneumatic drives – cylinders
Round cylinders (ISO 6432): DSNU, ESNU, DSN, ESN, CRDSNU
Profile/tie-rod cylinders (ISO 15552): DNC, DNCB, DNG, DNU, CDN, CRDNG
Compact cylinders (ISO21287): ADN, AEN
Up to 50% less space than standard cylinders as per ISO 15552 due to compact dimensions:
ADVU, AEVU, AEVUZ, AEVULQZ, ADVUL, ADVULQ
Minimal height due to small dimensions in relation to piston diameter:
ADVC, AEVC
Pneumatic drives – handling units
HGP, HGPC, HGPL, HGPM, HGPP, HGPT
HGD, HGDT
HGW, HGWC, HGWM
HGR, HGRC
HPV
Swivel gripper unit
HGDS
Shock absorbers:
Shock absorber selection
