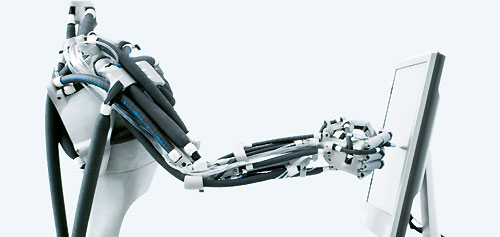

Airic’s_arm is inspired by nature. Combining mechatronics and the model of human biology, the robotic arm shows new possibilities in automated motion sequences of the future.



Airic's_arm is equipped with artificial bones and muscles. 30 muscles move the bone structure comprising the ulna and radius, the metacarpal bones and the bones of the fingers as well as the shoulder joint and the shoulder blade; joints that are not found in the world of technology.



The muscles are a product of Festo and are already widely used in industrial practice under the name of Fluidic Muscle. This technology, combined with very small and highly innovative piezo proportional valves from Festo, enable us to accurately control the design’s forces and rigidity. These actuators are coordinated by state-of-the-art mechatronic systems and software.



Extending the system of sensors of Airic's_arm, e.g. with cameras or elements for tactile perception, is just as plausible as the development of a design for a back, hip and neck. These extensions will also play an important role in robotics as even more dangerous and hazardous situations in technology could be assigned to them.
