Safety valves
MS6 / MS9 with
Performance Level C
600% more flow for your service units =
maximised efficiency!
Replace the filter in your service unit MS6
with the new size MS9 and optimise the
flow rate of your entire combination.
This especially applies to fine (LFM-B), micro
(LFM-A) and activated carbon filters (LFX).
• Low-cost mix of sizes
• Longer service life for fine and micro filters
thanks to pre-filtration with MS9-LF
• Different compressed air qualities thanks to
the new distributor module MS9-FRM
Are you familiar with our Energy Saving
Services? Save money right from the
first day.
16
Service units MS:
new size MS 9
Good, low-cost, high-performing:
certified safety, tailor-made for you!

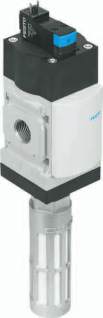

Ideal for applications with performance level
A, B or C: safety valves MS6-SV-C or MS9-
SV-C. The simple, single-channel design
enables safe, fast exhausting – and is also
very cost-effective.
• For safe exhausting with no residual
pressure
• Meets Performance Level C
acc. to DIN EN ISO 13849-1
• Flow rate 2 –
3: MS6-SV-C: 6,000 l/min,
MS9-SV-C: 15,000 l/min,
Pressure 3 … 16 bar
The unique, certified safety valve with an
ASI safety connection.
The redundant MS6-SV-ASIS is designed for
100% safe exhausting, with soft start, hourly
self tests, diagnostic functions and error
confirmation. The built-in pressure sensors
enable the unit to sense the input and hold
pressure P1 –
P2 via the bus – no additional
safety relay required!
• For safe exhausting with no residual
pressure
• Certified according to DIN EN ISO 13849-1
for cat. 4, Performance Level E
• Flow rate P2 –
P3: 9,000 l/min,
Pressure 3.5 … 10 bar
Safety@Festo: use this keyword to find out all
about safety issues.
17

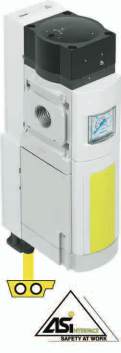

Safety valve MS6-SV-ASIS
with Performance Level E
34
New products 2012
