and, with just a little pressure, moves
the machine – which weighs 270 kg –
sideways, where he sets the bedplate
down on a workpiece carrier. This ends
the tour de force, which is now child’s
play since the machine’s power has been
tamed by engineering skill.
Power needs precision
Let’s take a look at the technical details
of the system to understand why this
latest development is so special. The
so called bedplate lies under the engine
block of the Aston Martin V8 and together
they surround the crankshaft. It is
called a bedplate because the crankshaft
“rests” inside it – at least when the British
powerhouse is in the garage. During
driving, it transmits a maximum power
of 430 hp at 7,300 rpm to the transmission
system of the V8 Vantage S. This is
sufficient for a top speed of 305 km/h
and a brutish pulling power of 490 Nm
at 5,000 rpm.
Precision is essential in manufacturing.
That is why the bedplate and engine
block must be tightly connected during
machining of the crankshaft bearing
channel. However, during subsequent
processing the workpieces need to be
separated again. In some cases, coolant
residue could cause a problem at this
point as it could get inbetween the two
aluminium workpieces and get into the
mechanical guide sleeves and cause
unwanted adhesion.
materials with the greatest protection
possible, giving this technology the licence
to let go!
Exceptional achievement

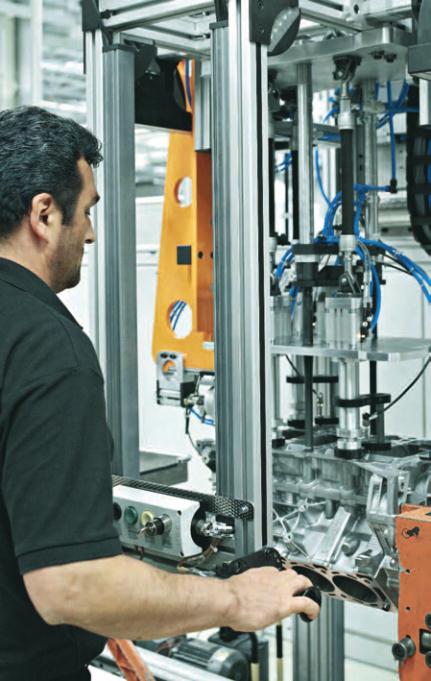

By simultaneously pressing the start
levers, the operator gently but forcefully
sets the system in motion. It lowers and
attaches itself to the bedplate using
technology for which the developers from
Cologne have applied for a patent. The
operator then switches the lever pair, the
inner machine unit lifts up slightly and a
uniform vibration releases the bedplate
with a resonant sound. Within less than
a second, it floats unattached above the
massive Aston Martin V8 engine block.
The bedplate is automatically rotated
180° and reveals its interior. At this point,
the operator presses the start lever again

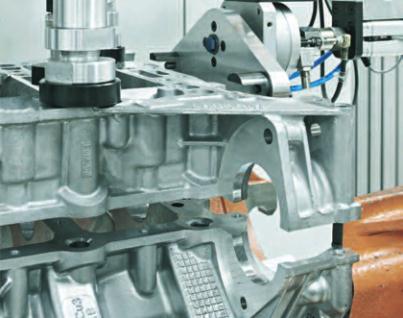

The bedplate and engine block
of the Aston Martin V8 are still
connected to each other, but
the vibrations of the pneumatic
muscles will soon separate
them (left).
The decisive moment:
the
bedplate has been released,
the inner machine unit is lifted
away from the engine block with
the weight compensated by
a standard cylinder (top).

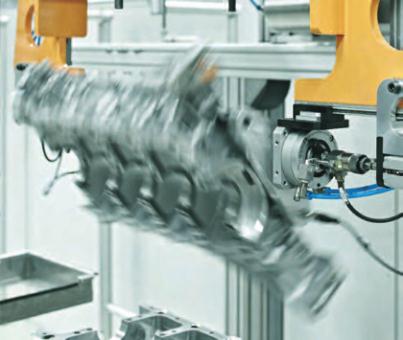

Elegant swing:
after being
rotated 180 degrees, the
bedplate is ready to be set
down on the workpiece carrier
(bottom).
