Mechanical connectivity - Electric actuators

Our broad portfolio of mechanical linear axes and rotary modules offers you an almost infinite variety for automating movements. Discover our innovations for the best mechanical connectivity. The products of the ELGC, EGSC and EPCC families score particularly well. They can be perfectly combined with each other and are attractively priced.

___________________________________________________________________________________________

ELGD-BS – the new generation of electric spindle axes

Highly precise, high feed forces, high stability and flexibly combinable


The ELGD-BS spindle axis has an internal, double-sided recirculating ball bearing guide as well as a drive with ball screw, protected by a permanently magnetic stainless steel cover tape. Our portfolio includes 6 standard versions with widths ranging from 30 to 160 mm, starting with the main sizes 60/80. Further sizes will be introduced in 2024. A maximum stroke of 2.5 m and two carriage lengths are already available.

  • High rigidity, high feed forces and durable guide system
  • Innovative Leadership Technology
  • High-performance drive elements
  • Innovative stainless steel masking tape solution
  • Use in battery production due to suitable materials with a small 1 % copper and zinc content

__________________________________________________________________________________________

ELGD-TB – the new generation of electric timing belt axes

Highly dynamic, high-precision and heavy-duty

The ELGD-TB timing belt axis offers an internal, double-sided recirculating ball bearing guide and timing belt drive, protected by a permanently magnetic stainless steel masking tape. With 6 standard versions from 30 to 160 mm wide, starting with the main sizes 60/80. Further sizes will follow in 2024.A maximum stroke of 8.5 m and different carriage options are already available.

  • Optimized axle design for electric axle mechanics
  • Minimized particle emission for use in cleanrooms
  • High speeds over the entire stroke range
  • Use in battery production due to suitable materials with a small 1 % copper and zinc content

____________________________________________________________________________________________

ELGT spindle axis for boom systems

Compact, inexpensive, powerful and flexibly combinable


The new spindle axis with integrated double guide can be flexibly combined to form 2D and 3D cantilever systems. The double-guide design and the extremely stable connecting elements distinguish the ELGT, make it stable in the system and allow high payloads with long strokes at the same time.

  • Developed for many applications, e.g. in the electronics industry, for desktop applications, in test and inspection systems, for small parts handling, in assembly systems, and many more.
  • Use in battery production due to suitable materials with less than 1 % copper and zinc content
  • Powerful axes combined as a 3D boom system with e.g. up to 20 kg payload at speeds up to 0.5 m/s.

_____________________________________________________________________________________________

Spindle- and Toothed belt axis

Compact, protected and cost-effective


When it comes to the most compact dimensions and optimised installation space, the ELGC axis family scores. This makes it predestined for use in assembly systems, in small parts handling, in the electronics industry or in desktop applications. At the same time, its intelligent design is convincing: Thanks to its internal guide and practically gap-free design, it is optimally protected against external influences and thus particularly durable and resilient. Always there: the flexible motor mounting.


_____________________________________________________________________________________________

Mini slide EGSC

Compact and powerful


If you want to realise vertical movements or guided linear single movements in the smallest installation space, the mini slide EGSC with ball screw drive and integrated linear guide is the product of your choice. It convinces not only with its compact format, but also with extremely simple assembly, high guide precision and high force absorption.

  • Compact: optimum ratio of installation space to working space
  • Precise: very good positioning accuracy with simultaneous high load capacity
  • Flexible: diverse mounting options for optimum machine integration
  • Unique: "one-size-down" mounting with the linear axis ELGC

___________________________________________________________________________________________

Electric cylinder EPCC

Precise, economical and flexible


The new and compact electric cylinder EPCC with ball screw drive enables precise and fast positioning up to a maximum stroke length of 500 mm. With its compact dimensions, it is perfectly suited for tight installation spaces where handiness and efficiency are required.


  • Ball screw with integrated coupling and double bearings
  • IP40 protection class
  • Extensive range of mounting accessories for a variety of installation situations
  • Ideal in system with mini slide EGSC and linear axis ELGC

___________________________________________________________________________________________

Cantilever axle ELCC with toothed belt

Extremely stiff, light and compact

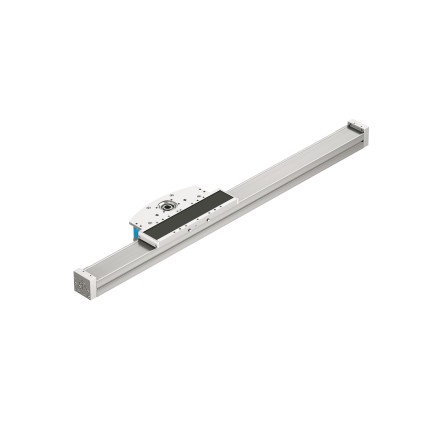

The new ELCC cantilever axis with toothed belt combines extremely high rigidity with the advantages of light weight and compact design, making it the ideal solution for applications in areas such as machine loading, pick & place, packaging and palletising.

___________________________________________________________________________________________

Toothed belt and spindle axis EGC and EGC-HD

High load capacity with maximum rigidity


Extensive series with numerous variants, e.g. for high dynamics and speed, high loads and torques. All in all, it is the heavy-duty axle range in the mechatronic multi-axis modular system - and just as suitable for individual solutions as for complete solutions in the system. The large-dimensioned profiles of the EGC with their optimised cross-section enable maximum rigidity and load capacity of the drives. Speed, acceleration and torque absorption set a new standard - also with the new EGC-HD with heavy-duty guide for extremely high load and torque absorption with simultaneous high speed and acceleration. Another plus: Due to the high performance of the axes, it is often possible to dimension one size smaller - especially with spindle axes!
