Do you want your production processes to become more flexible?

The use of the Multi-Carrier-System results in maximum machine flexibility.

Rigidly linking conventional conveyors is no longer necessary as the system provides freedom of motion with maximum dynamics.

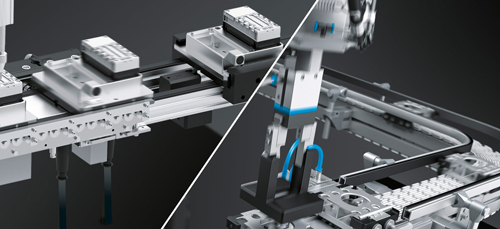

With this configurable transport system the carriers driven by linear motors move flexibly to the individual units for example for filling, closing and labelling. The system moves freely, is precisely synchronised with the process and can be integrated into the existing intralogistics – including seamless inward and outward transfer of the carriers. The other conveyors remain unchanged.

  • Modular concept for fast changeover of the machine to different formats, other product types or seasonal requirements - up to lot size 1.
  • Integrated concept for controlling transport motions and motion control functions as well as coordinating additional machine modules

Highlights

Multi-Carrier-System MCS
  • Freely configurable linear system
  • Easy to integrate into existing intralogistics
  • Supplements classic transport solutions by providing maximum flexibility
  • Product transport and positioning on carriers with the aid of linear motors
  • Integrated controller for transport motion and motion control functionality

The benefits to you: free configuration and flexible transport

Multi-Carrier-System MCS
  • Excellent flexibility: seamless inward and outward transfer of carriers
  • Easy integration: existing transport and logistics solutions can be used
  • Flexible operation: acceleration and speed can be set freely and individually, several carriers can be grouped and moved synchronously
  • 1 controller for everything: for the Multi-Carrier-System and other machine modules
  • Highly dynamic operation and high speed combined with high carrier working load

System setup

  • Simple, modular, mechanical basic system
  • Linear motor, basic profile and roller track
  • Passive carrier without motor and active electronics for low-wear and low-vibration transport motion
  • High-performance control system: complete integration of motion control tasks for the entire system.

The benefits to you: free configuration and flexible transport

  • Excellent flexibility: seamless inward and outward transfer of carriers
  • Easy to integrate: existing transport and logistics solutions can be used
  • Flexible operation: acceleration and speed can be set freely and individually, several carriers can be grouped and moved synchronously
  • One controller for everything: for the Multi-Carrier-System and other machine modules
  • Highly dynamic operation and speed combined with high carrier working load

Sturdy carriers

Multi-Carrier-System: heavy-duty carrier
  • Product is transported directly on passive carriers
  • Low-vibration and jerk-free motion
  • Free motion of each individual carrier in the system, including travel with constant force
  • Multiple carriers can be grouped and moved synchronously

SINAMICS drive system

Multi-Carrier-System: SINAMICS
  • Modular drive system for machine and plant construction
  • Suitable for single-axis or multi-axis applications
  • Permits modular and flexible machine concepts

SIMOTION motion control system

Multi-Carrier-System: SIMOTION
  • Scalable, modular motion control system for highly dynamic applications
  • SIMOTION easyProject project generator for creating a loadable and executable project in just a few mouse clicks
  • SIMOTION SCOUT for uniform, consistent engineering across the entire system
  • Application-oriented hardware platforms: PC-based or drive-based

Videos



Would you like more information?

Here's how to




Operating principle of the Multi-Carrier-System
