Fluidic muscle

Diaphragm drives – fluidic muscle from Festo show enlargement
  • High force combined with a small diameter
  • Frequency up to 150 Hz
  • Frictionless movement
  • Hermetically sealed
  • Dirt-resistant

Support for all questions:

+49 (0)711 347-76973


Awards for Fluidic Muscle from Festo

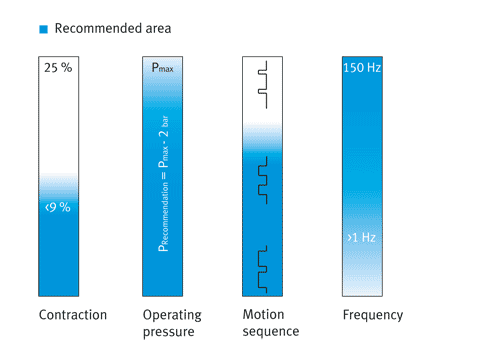

Fluidic muscle: configuration

Note:

  • Kinking, buckling or torsion are not permissible and will lead to premature failure of the diaphragm.
  • Pre-stretching by up to 0.5% will prevent kinking and buckling.
  • Motion sequence: minimise time in pressureless state (-> residual pressure down to 0.5 bar)
