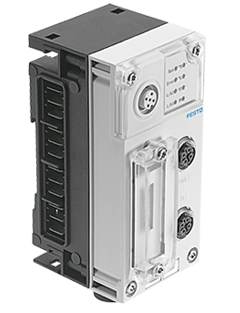

Bus Node for EtherNet/IP CPX-FB36

Bus Node for EtherNet/Ip CPX-FB36

High performance connection for EtherNet/IP networks

EtherNet/IP connection for solenoid valves, proportional pressure regulation and analog/digital I/O

The CPX-FB36 offers state-of-the-art connection to EtherNet/IP networks.



  • Faster throughput and response with 1ms RPI.
  • Increased uptime with DLR support (Device Level Ring).
  • Integrated EtherNet switch reduces costs.
  • QuickConnect support for fast tool changeover times.
  • Greater flexibility for the programmer thanks to configurable SINT or UINT data types.

Features

  • Full support for DLR (Device Level Ring)
  • Full support for EtherNet/IP QuickConnect
  • Support for point level diagnostics

                o   Short circuits

                o   Open coils

                o   Parameterization errors

  • Browser based diagnostics
  • Support for UINT or SINT data types
  • Also supports Modbus TCP
  • Standard CIP Objects and I/O-Mapping is equivalent allow easy conversion of older CPX-FB32 units.
