Electrical positioning systems

Optimised Motion Series – electric automation

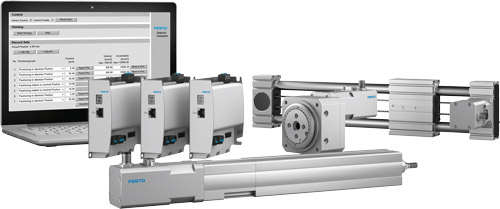

Optimised Motion Series: low-cost with optimised performance

A package that makes moving and positioning easier than ever before while being significantly cheaper than conventional electrical solutions.



In the package: motor controller (drive system) with servo motor technology including matching cabling



Everything has a unique type code: easy to configure and to order the right size and combination. As a result, the workload is reduced in your purchasing department and you save time, because the individual parts no longer have to be assembled.



Plus: quick parameterisation and commissioning thanks to web server/browser concept

Electric cylinder EPCO

Electric cylinder EPCO

Electric cylinder with non-rotating piston rod and plain bearing guide. Even more powerful and versatile with optional guide unit.

  • Available in 3 sizes with strokes of up to 400 mm
  • With permanently mounted, optimally tuned motor in all sizes



Electric cylinder EPCO

Rotary drive

Electric rotary drive ERMO

Complete solution for rotating and aligning parts and workpieces

  • Suitable for swivelling tasks under heavy loads
  • Can be used for simple rotary indexing table applications
  • Sturdy and backlash-free ball bearings



Rotary drive ERMO

Toothed belt axis ELGR

Electric toothed belt axis ELGR

For simple and cost-efficient automation tasks

  • Long service life of 5,000 km
  • Three sizes for payloads of up to 6.8 kg



More about the toothed belt axis ELGR

Draaiaandrijving ERMO

ERMO zwaaiaandrijving

Robuust en precies

  • Beschikbaar in 4 maten
  • Vast aangebouwde motor

Elektrische draaiaandrijving ERMO

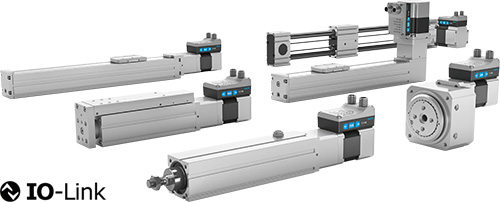

Optimised Motion Series in the system

Optimised Motion Series

Cost-effective multi-axis solutions for simple handling tasks

  • Easy assembly without the need for adapters
  • Easy configuration of individual axes and rotary drive via WebConfig

How easy is it to assemble a complete handling system?

Watch the video

Configuration with WebConfig

Configuration with Web Config

Quick and easy configuration and parameterisation

  • Download parameter set from the parameter cloud
  • Parameterise up to seven freely definable positions directly on the PC



WebConfig

Software Festo Configuration Tool FCT

Festo Configuration Tool FCT

Flexibele configuratie en parametrisering

31 beschikbare positiesets via digitale I/O aan te sturen. Oneindig veel posities via ModbusTCP, IO-Link of Ethernet.

Festo Configuration Tool FCT

Motor controlor CMMO-ST

CMMO-ST

Closed-loop Servolite controller voor positionering

  • Tot 7 vrij definieerbare posities via rechtstreeks toegekende IO’s

  • Of, tot 31 vrij te bepalen posities via de Festo Configuration Tool (FCT)



Motor controlor CMMO-ST

Meer informatie

Optimised Motion Series



Uitzonderlijke promotie

Optimale prestaties voor een interessante prijs.

Om deze reeks extra te promoten starten we met een uitzonderlijke actie: tot en met 31 December 2016 hanteren we promotarieven voor deze componenten die u allemaal terugvindt in onze Online Shop. Nog geen account? Contacteer ons!

*Voorbeeld configuratie: diameter 16, slag 50, met controller en kabels. Geldig tot 31-12-2016.
