With the Handling Guide Online you will find the right standard handling system quickly and easily in just 3 steps

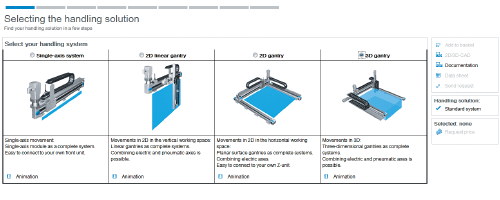

Select the type of handling system:
- Single-axis system
- Linear gantry
- Planar surface gantry
- Three-dimensional gantry
Enter your application data:
The Handling Guide Online will use your data to work out suitable solutions.

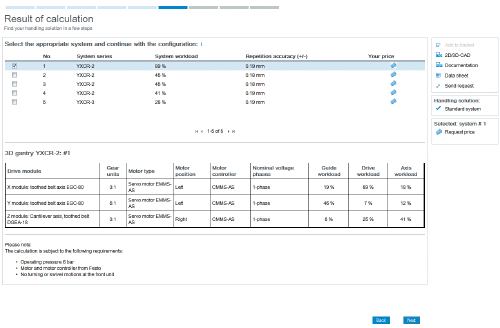

Select your handling system:
Select the system you want from the list of suggestions.

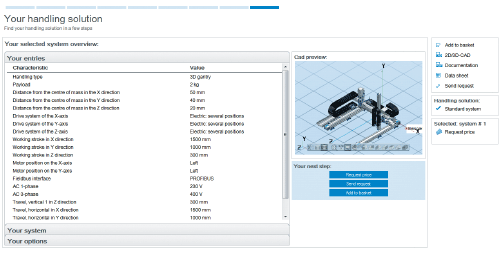

Download the CAD model and data sheet:
- CAD models for your configuration in all standard file formats
- Data sheet with all the relevant data for your configuration
- Simple integration into your machine design
Order your handling system:
- Configure additional options
- Add the handling system to your basket
- Log in to the Festo Online Shop and place your order
Delivery of your handling system:
Your handling system will be delivered in no time, either ready to install or partially assembled.
If you have advanced technical requirements, you can simply send your application data to our experts at the click of a button and you will receive a customised offer.
