Measurement and control technology

In practice, it is not enough to only know controller types and controls, but it is also a matter of skill!

The learner must also know how to apply what he has learned. This is exactly what we convey with our learning systems – the behavior of different controller types is tested, integrated into controls, controller parameters are set and measured. With these practical exercises, which are adapted to industrial processes, theoretical knowledge is imparted quickly and efficiently.

Testing 123

The learning concept

The didactic concept of EduKit PA supports experimental learning as well as teaching controlled by teachware.

The experience of Festo's engineers and the industry experience of our trainers have been incorporated in many places. So it is not surprising that the EduKit PA is even used in the further training of industry specialists worldwide

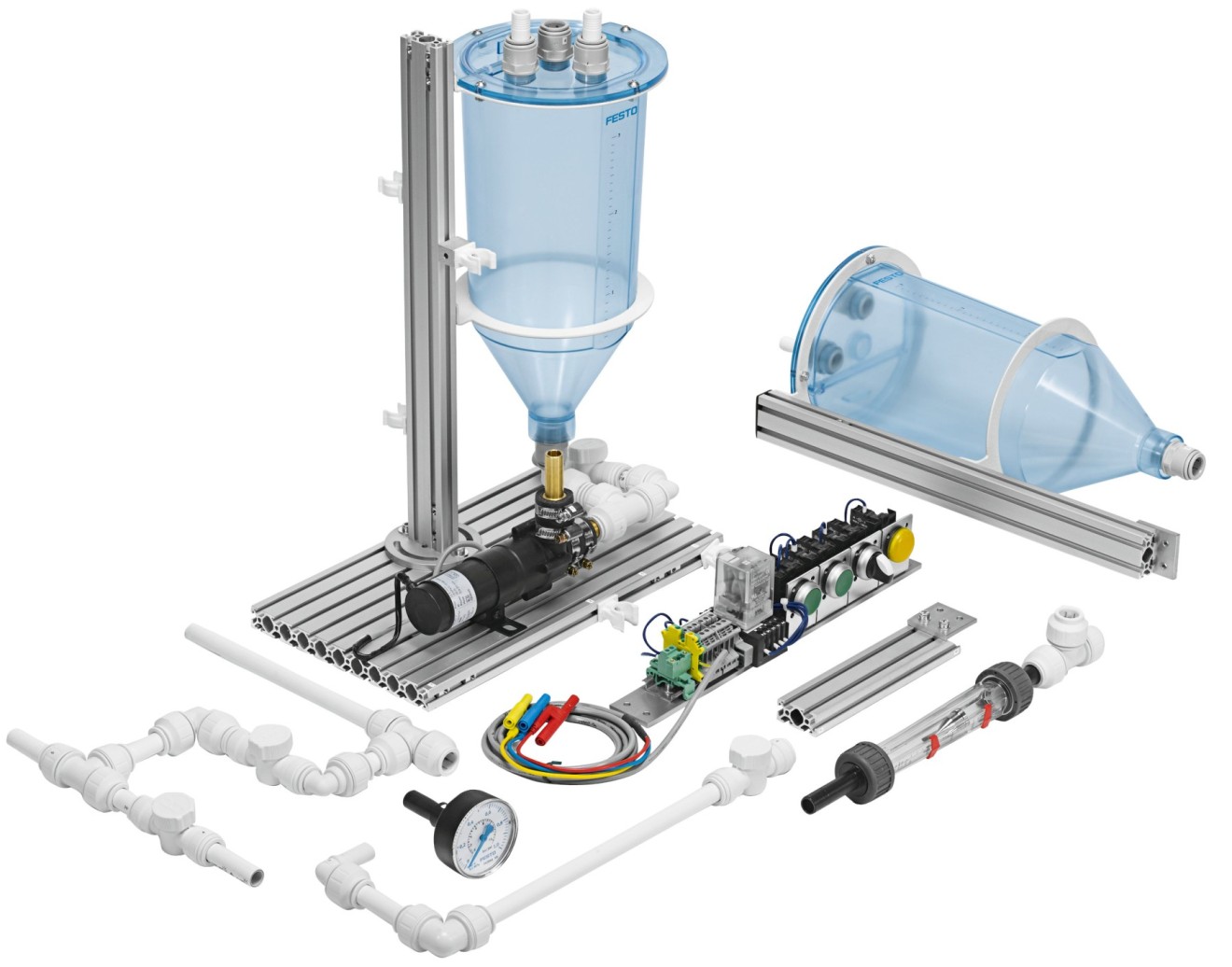

EduKit PA

EduKit PA Basic

The EduKit PA is ideal for limited space and small budgets as well as for an introduction to measurement and control technology. The use of control technology can save energy and resources. On the way to efficient production, individual steps must be planned, processes understood and cross-checked. With the Basic and Advance project construction kits, getting started is easy and risk-free.

Further information
EduKit PA Advanced

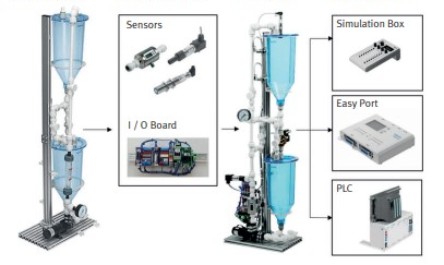

EduKit PA Advanced


With the EduKit PA Advanced, automation technology is added with the pressure, flow and ultrasonic sensor and the I/O connection board for a controller of your choice. A 2/2-way magenta valve controls the filling into the lower tank. An industrial process valve can also be used here.

Further information

Further information
EduKit PA

EduKit PA Basic and Advanced

Assembly
Extension IoT Kit

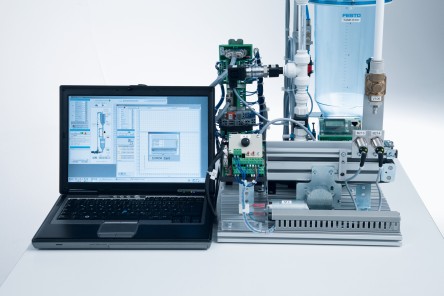

Extension IoT Kit

As a comprehensible example, a practical model of a bottling plant is used, which is networked with suppliers and customers via the Internet.

This shows how industrial business processes are changing as a result of information technology networking, for example by showing that sensor signals for monitoring the inventory of tanks automatically trigger ordering processes.

Further information

A lot of learning content is included in Festo LX

For example

  • MPS PA 204 Process Automation
Discover Festo LX
MPS PA Compact Workstation

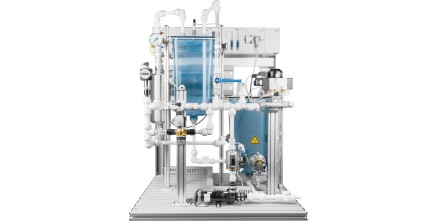

MPS PA Compact Workstation

All industrial processes in just one learning station

The optimal solution for industry-related teaching in the smallest of spaces. Compact and with state-of-the-art industrial technology, this station can be used to operate the 4 control sections level, flow, pressure and temperature individually. On the basis of continuous processes, learning scenarios for measuring, controlling and regulating can be carried out.

Further information
