Filter regulator lubricator

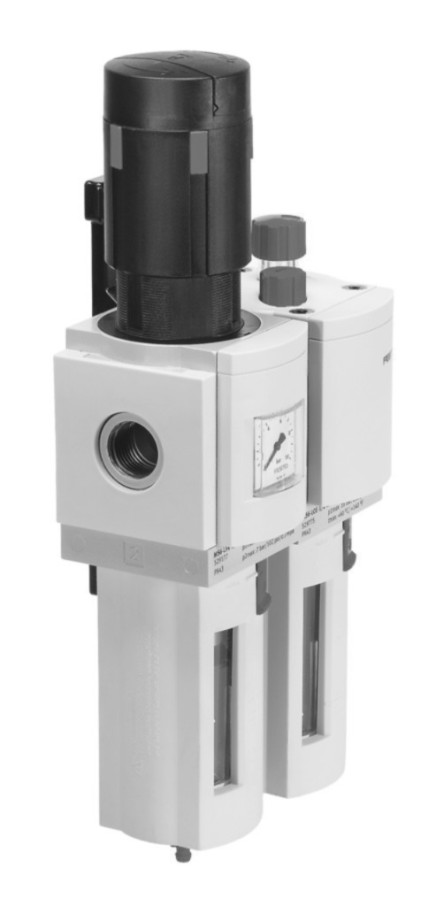

A unit consisting of a filter regulator and lubricator is used when the compressed air not only needs to be cleaned but also oiled. The filter regulator removes the condensate and coarse dirt from the compressor. The lubricator supplies a precisely dosed amount of pneumatic lubricating oil.
Understanding FRL Units
Definition and meaning of FRL in pneumatic systems
FRL units combine the functions of a Filter, Regulator, and Lubricator. They condition and prepare the air before it reaches the equipment, ensuring that the supplied air is clean, well-regulated, and properly lubricated. This optimization enhances the performance and extends the lifespan of pneumatic tools.
- Filter: Removes contaminants and moisture from compressed air, preventing wear, corrosion, and failure in pneumatic tools and machinery.
- Regulator: Maintains consistent air pressure to avoid fluctuations that could affect tool operation or process efficiency.
- Lubricator: Adds a fine mist of oil to the air, reducing friction and wear on moving parts, which enhances the operational lifespan and reliability of pneumatic devices.
- Filter, regulator and lubricator functions in a single unit.
Key Components of an FRL
1. Filters
Filters are the first line of defense in an FRL unit, tasked with purifying compressed air before it reaches any downstream equipment within a pneumatic system. They work by removing harmful contaminants such as dirt, dust particles, and moisture that accumulate within the compressed air during the compression process.
This is an essential function because even tiny impurities can cause significant damage, leading to reduced efficiency, increased wear and tear, and potential system failures over time. Filters typically incorporate fine mesh elements or coalescing mechanisms to effectively trap particulates and separate liquids from the air stream.
Selecting the appropriate filter for the specific needs of an application is important, as different environments may present distinct challenges that require tailored filter solutions to effectively mitigate risks associated with contamination. Regular maintenance and timely replacement of filter elements are crucial, ensuring they continue to perform optimally and safeguard the system’s components.
2. Regulators
Regulators are integral components of an FRL unit, responsible for ensuring that the air pressure within a pneumatic system remains within the desired range. They work by adjusting and controlling the pressure of the compressed air, catering to the specific requirements of the connected equipment.
This regulation is vital because inconsistent air pressure can lead to erratic equipment performance, compromising efficiency and potentially causing damage to sensitive components. By maintaining a steady flow of air at an optimal pressure level, regulators help in optimizing energy usage and improving the precision of pneumatic operations. Additionally, these devices often include a pressure gauge, providing a visual indicator that allows for quick and easy monitoring, enabling operators to make real-time adjustments as necessary.
Proper selection and calibration of a regulator not only enhance the system's longevity but also contribute to a safer operational environment by preventing over-pressurization and other common pneumatic system issues. Including a high-quality regulator as part of the FRL unit setup is essential for achieving reliable and efficient performance in a variety of industrial applications.
3. Lubricators
Lubricators are the last element of an FRL unit, tasked with adding a precise amount of lubrication to the compressed air stream, thereby reducing friction among moving parts within pneumatic equipment.
This injection of lubricant helps maintaining the efficiency and longevity of the machinery, as it minimizes the wear and tear caused by metal-on-metal contact within the system. Lubricators typically dispense oil in a fine mist, which then travels with the compressed air to reach all components, ensuring even distribution and protection. Proper lubrication is especially vital in high-speed or heavy-duty applications, where the absence of adequate lubrication can quickly lead to overheating and component failure.
Regularly checking and refilling the lubricator reservoir is essential to maintain its effectiveness, as well as to prevent blockages or over-lubrication, which can both negatively impact system performance. By selecting a suitable lubricator for the specific needs of your pneumatic operation, you can enhance the reliability and durability of your equipment, ultimately resulting in reduced maintenance costs and extended service life.
Selecting the Right FRL Unit
1. Factors to consider for selection
When selecting the right FRL unit for your pneumatic system, several crucial factors must be considered to ensure optimal performance and compatibility with your specific application needs:
- Airflow Capacity: Measured in standard cubic feet per minute (SCFM) or liters per second (L/s). Choose an FRL unit with appropriate flow capacity to prevent bottlenecks and ensure efficient operation without pressure drops.
- Operating Pressure Range: Ensure the regulator can maintain consistent pressure levels that meet the technical requirements of pneumatic tools and machinery.
- Environmental Conditions: Evaluate factors such as extreme temperatures, corrosive elements, or high levels of particulate matter. Consider specialized filters or resistant materials to handle these challenges effectively.
- Ease of Maintenance: Look for FRL units that allow straightforward access and component replacement to minimize downtime and facilitate routine servicing.
- Compatibility: Ensure the FRL unit is compatible with your existing system in terms of size and configuration for seamless integration and reliable operation.
2. Find the right product based on your project needs
To help you select the right products for your project requirements, we provide our Air Preparation Service Unit Sizing tool. This tool allows you to quickly and easily determine the necessary air quality for your application and identify suitable devices that comply with the specified compressed air standards. With this resource, you can explore your options and find the ideal solutions to meet your needs.
3. FRL units from Festo

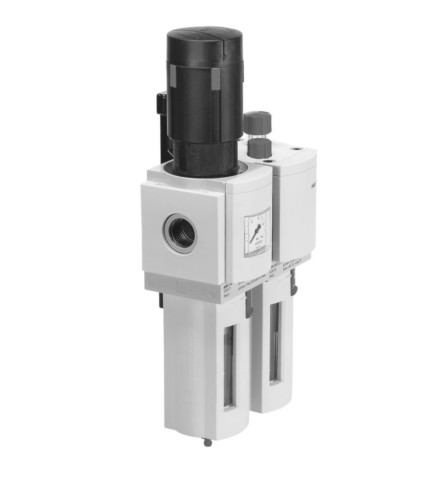

The MS Series line from Festo offers an extensive range of filter regulator units, specifically designed to meet diverse application needs. These FRL (Filter, Regulator, Lubricator) units are equipped with advanced features that enhance system performance, providing optimal air preparation solutions. With the versatility of the MS Series, users can tailor configurations to suit specific operational requirements, ensuring reliable filtration and precise pressure regulation. By integrating these sophisticated units into pneumatic systems, users can improve efficiency, reduce downtime, and enhance overall productivity. For more information, visit our MS Series FRL units.
