Typical contaminants in one cubic meter of unprepared ambient air can include:

• Dirt particles: Up to around 180 million particles between 0.01 µm and 100 µm
• Viruses: Approx. 0.01 µm
• Tobacco smoke particles: Approx. 0.1 µm
• Water droplets: Typically 5–80 µm after condensation
• Hair: Approx. 40–150 µm
• Water: Ambient air at 21 °C and 60% relative humidity contains 11 g of water per cubic meter
• Oil: Ambient air can contain up to approx. 0.03 mg of oil per cubic meter, depending on the environment
• Chemical contaminants: Such as lead, cadmium, iron, mercury, and other pollutants

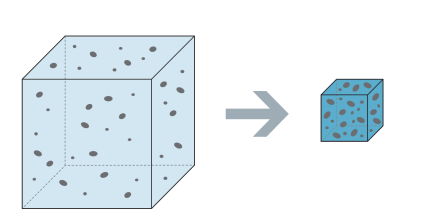

When this air is compressed, all these contaminants become more concentrated. Without proper preparation, they can enter the compressed air network and negatively affect components, processes, and product quality.

The triple threat: particles, water, and oil

The long-term consequences of poor air quality

If compressed air contamination is not addressed, the effects are often seen across the entire lifecycle of the system:

• Higher maintenance costs: Components such as valves, cylinders, and filters must be replaced more frequently. Service intervals become shorter and unplanned interventions more common.
• Operating malfunctions: Contaminants cause sticking valves, fluctuating pressures, and unpredictable system behavior. This leads to production interruptions and reduced overall equipment effectiveness (OEE).
• Reduced service life: Corrosion, wear, and seal damage shorten the lifetime of pneumatic components and system parts, increasing investment and replacement costs.
• Higher energy consumption: Blocked filters, contaminated lines, and leaking seals increase pressure losses and air consumption. Compressors must work harder and longer to maintain pressure, raising energy costs.
• Quality issues and scrap: In sensitive processes—such as painting, food processing, electronics, or pharmaceutical production—contaminated air can directly affect product quality, leading to rework, scrap, and customer complaints.

Systematic air preparation and maintenance are therefore not only technical necessities, but also key levers for cost and quality optimization.

Industry-specific requirements

Different industries place different demands on compressed air quality:

• Food and beverage: Requires extremely clean, often oil-free air to avoid product contamination and to meet hygiene regulations.
• Pharmaceutical manufacturing: Demands the highest purity levels to protect product integrity and comply with strict regulatory requirements.
• Electronics production: Needs dry, particle-free air to prevent damage to sensitive components and avoid electrostatic issues.
• Automotive painting: Requires oil-free, clean air to ensure proper paint adhesion and a high-quality surface finish.

Many sectors refer to standards such as ISO 8573-1, which define compressed air purity classes for particles, water, and oil. Customer specifications and local regulations typically specify the required purity class. The target air quality should always be defined based on the specific application and aligned with the latest standards, customer requirements, and applicable regulations.

The solution: proper compressed air preparation

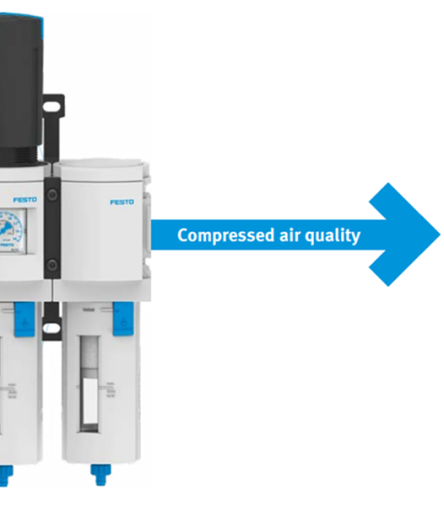

Effective compressed air preparation combines suitable equipment with consistent maintenance. Both are essential for achieving and maintaining the required air quality over the entire service life of the system. Modern air preparation systems integrate several functions to address the main sources of contamination:

Maintenance: ensuring long-term performance

Even the best air preparation equipment can only perform reliably if it is maintained regularly. Structured maintenance supports stable operation, compliance with standards, and energy-efficient system performance.

Key maintenance tasks include:

Filter replacement

Filters gradually become loaded with contaminants. Timely replacement ensures consistent filtration performance, prevents blockages, and avoids excessive differential pressure that would increase energy consumption.

Dew point monitoring

Regular monitoring of the pressure dew point helps verify that dryers are working correctly and that the required moisture levels are maintained.This is particularly important in applications with strict dew point requirements or in environments where low temperatures can cause freezing.

System checks

• Routine inspections of the compressed air system, including drains and condensate discharge, help detect potential issues at an early stage.

• Monitoring differential pressure across filters and checking for leaks support energy-efficient operation and stable system performance.

A documented maintenance strategy, aligned with manufacturer recommendations and application requirements, is a key element of sustainable compressed air management.
