What is pneumatic pressure?

Pneumatic pressure is the force created by compressed air within a system. This pressurised air is the energy source that powers a wide range of devices — from cylinders and grippers to valves and actuators — enabling movement, clamping, lifting, and precise control in automated processes.

In a typical system, air is drawn in by a compressor, filtered to remove moisture and particles, and then stored in a receiver tank. From there, it travels through air preparation units, regulators, and valves before reaching the end devices. Each of these components plays a role in maintaining the correct pressure and ensuring consistent performance.

Pressure is expressed in the SI unit megapascals (MPa), but in industry bar and psi are also widely used (1 bar = 0.1 MPa = 14.5 psi).

The required level depends on the application — for example:

• Standard industrial compressed air systems often operate at pressures around 0.6 to 0.7 MPa (approximately 6 to 7 bar, or 87 to 102 psi).
• Sensitive applications, such as laboratory automation, may run at lower pressures for precision.
• Heavy-duty actuators or process machinery might require higher pressures for increased force output.

Understanding how pressure is generated, transmitted, and maintained is essential for effective system design. Insufficient pressure can lead to slow or incomplete movements, while excessive pressure can result in increased wear, noise, and energy consumption. Therefore, balancing pneumatic pressure is one of the most important factors for achieving energy-efficient automation.

Why correct pressure matters

According to guidance from the British Compressed Air Society (BCAS), lowering system pressure can deliver meaningful energy savings — around 5% for a 10% pressure reduction, or up to 7% per bar depending on system design and demand.

Too low a pressure, however, causes inefficiencies such as sluggish actuator movement, too low feed forces, incomplete cycles, or inconsistent product quality — all of which can lead to downtime and higher costs.

Getting pressure “right” supports sustainability, cost control, and machine longevity.

Monitoring pneumatic pressure

Accurate and continuous pressure monitoring is essential for maintaining system reliability, safety, and efficiency. Even small deviations in pressure can affect cycle times, product quality, and energy use, especially in high-precision applications such as packaging, assembly, or laboratory automation.

Monitoring ensures that air pressure stays within the defined range for each process. It also helps detect early signs of leaks, clogged filters, or regulator faults, allowing for preventative maintenance rather than costly downtime.

Common monitoring devices include:

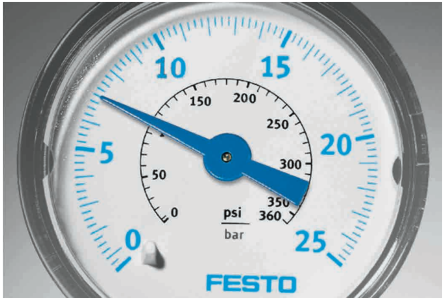

• Pressure Gauges: Traditional pressure gauges provide analogue readings that give a quick visual indication of system pressure. They are simple, cost-effective tools for manual checks during maintenance or setup. To ensure long service life, gauges should only be pressurised up to two-thirds of their scale range.
• Pressure Sensors: Electronic pressure sensors deliver precise readings in real time. They can monitor set pressure for specific applications — for instance, to guarantee correct clamping force or dosing volume. Many modern sensors feature digital displays and integrated switching outputs, and IO-Link connectivity, allowing them to communicate directly with PLCs or machine controllers.
• Differential Pressure Sensors: These sensors measure the pressure drop across components such as filters or dryers. A rising pressure differential often indicates a blocked or saturated filter element, signalling when maintenance or replacement is required. This helps maintain consistent air quality and prevents unnecessary pressure loss.

Smart pressure monitoring in modern automation

With the growing focus on energy efficiency and predictive maintenance, many manufacturers are integrating smart pressure monitoring systems into their machines.

Digital sensors connected via IO-Link or fieldbus networks transmit real-time pressure data to control systems or dashboards. This enables:

• Early fault detection, such as leaks or pressure fluctuations
• Trend analysis to optimise maintenance intervals
• Energy consumption tracking to identify areas for improvement

Flow and pressure sensors such as SFAM-EMD, together with energy efficiency modules such as MSE6, can provide measurement and diagnostic data at machine level and help monitor, analyse, and optimise compressed air usage across pneumatic systems.

By combining these sensors with intelligent controllers and dashboards, engineers gain complete transparency over the entire compressed air network — from the compressor station to the actuator.

Reliable pressure monitoring is not just about safety; it’s about optimising performance, energy use, and maintenance planning. The more accurately a system can track and respond to pressure variations, the more efficient and sustainable its operation will be.

Managing and regulating pressure

Maintaining optimal pneumatic pressure requires both the right components and careful system design. A well-regulated system ensures stable operation, protects downstream equipment, and reduces unnecessary energy consumption.

Key components for pressure control include:

Pressure regulators

• Pressure regulators maintain a consistent operating pressure and compensate for fluctuations in the compressed air supply.
• Directly actuated regulators use a spring and control piston for simple, responsive regulation.
• High-flow regulators use a piston or diaphragm with an air cushion to handle greater flow rates.
• If different parts of a machine require different pressures, additional regulators can be installed locally to provide precise control.

Pressure regulating valves

These valves ensure the machine or circuit receives the defined pressure required for the application. To minimise pressure drop and protect the valve from contaminants, a strainer or filter should be installed upstream of the regulator.

Soft-start valves

• Soft start valves gradually build up pressure during system start-up to prevent sudden, uncontrolled movements that could damage downstream components.
• Pneumatic soft start valves typically open fully at around 50% of the inlet pressure.
• Electrically actuated soft-start valves can switch to full pressure at a programmed point, providing greater flexibility based on application needs

Pressure drop: causes and solutions

Pressure drop is a common challenge in pneumatic systems and can significantly affect performance and efficiency. Even small pressure losses can reduce actuator speed, increase cycle times, and raise overall energy consumption.

Common causes of pressure drop include:

• Long or complex piping layouts
• Multiple branches or sharp bends
• Rough or contaminated inner surfaces
• Undetected air leaks
• Flow restrictions from filters, dryers, or valves

To minimise pressure drop:

• Use correctly sized pipes, fittings, and components
• Keep lines clean, dry, and free from obstructions
• Regularly check for and repair leaks
• Select filters and dryers designed with low-pressure-drop characteristics

Practical tips for optimal performance

• Choose service units and components rated for the required pressure range.
• Inspect your system routinely for leaks, pressure drops, or unusual fluctuations.
• Set and fine-tune pressure regulators according to application needs — avoid over pressurising.
• Monitor pressure at key points in the circuit to ensure consistent operation.
• Use high-quality filtration and air preparation equipment to maintain clean, stable airflow.
