Power generation with the wing-beating principle

With the DualWingGenerator, Festo has developed an extraordinary technology platform as part of the Bionic Learning Network. In contrast to conventional small wind power stations, the system uses two pairs of opposing wings instead of rotor blades to generate power.

Reverse principle of the natural beating of wings

The system’s principle consists of reversing the natural wing-beating principle: birds generate the necessary power to move forwards in the air by flapping their wings. A stationary system like the DualWingGenerator, on the other hand, can take the kinetic energy from the flow of air. The wings’ linear lifting movement is converted here into a rotary movement. An integrated electric motor turns the energy produced into electricity.

  • Highly complex controls: coordinated correcting variables for greater plant efficiency and process reliability.
  • New concept: opposing pairs of wings with linear lifting movement ...

    New concept: opposing pairs of wings with linear lifting movement ...

  •  ... and active wing rotation modelled on the bionic SmartBird

    ... and active wing rotation modelled on the bionic SmartBird

  • Decentralized power generation: highly efficient conversion of wind power into electricity

    Decentralized power generation: highly efficient conversion of wind power into electricity

  • Optimal reversal points: active controls to preserve the mechanics ...

    Optimal reversal points: active controls to preserve the mechanics ...

  •  ... and to make efficient use of the prevailing wind forces

    ... and to make efficient use of the prevailing wind forces

  • Continuous testing: whether in the scientific laboratory set-up ...

    Continuous testing: whether in the scientific laboratory set-up ...

  • ... or through the development of the material

    ... or through the development of the material

Ultimate effectiveness levels at low wind strengths

The DualWingGenerator is self-optimising and can adapt itself to different wind conditions. In terms of its efficiency, it is by no means inferior to conventional small wind power stations and features amazing benefits even at low wind speeds: in the range between 4 and 8 m/s, the system has a very high, scientifically proven effectiveness level.

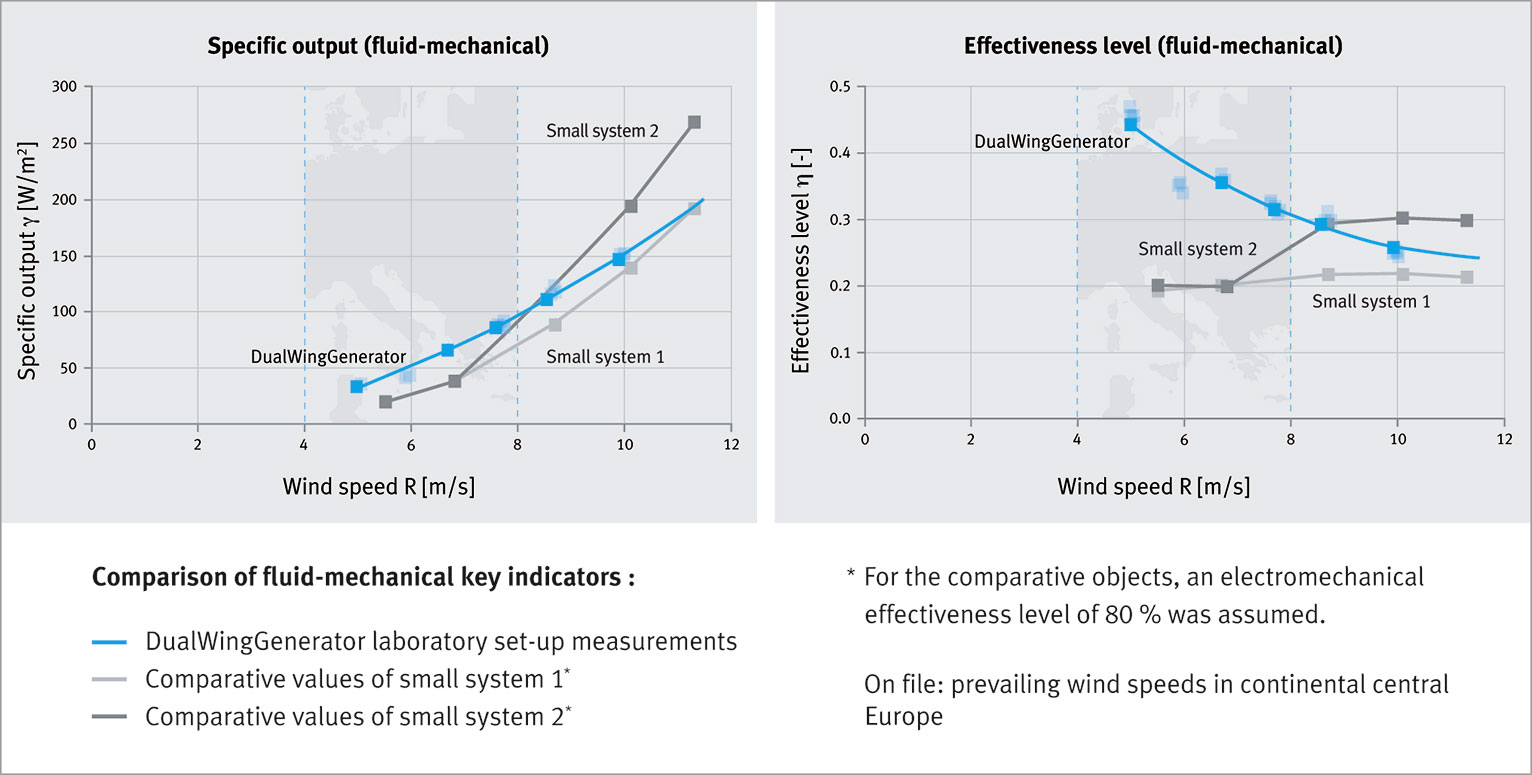

Amazing result: ultimate effectiveness level at low wind speeds, as prevail in Central Europe.
Amazing result: ultimate effectiveness level at low wind speeds, as prevail in Central Europe.
