Find out more about the pneumatic sizing tool

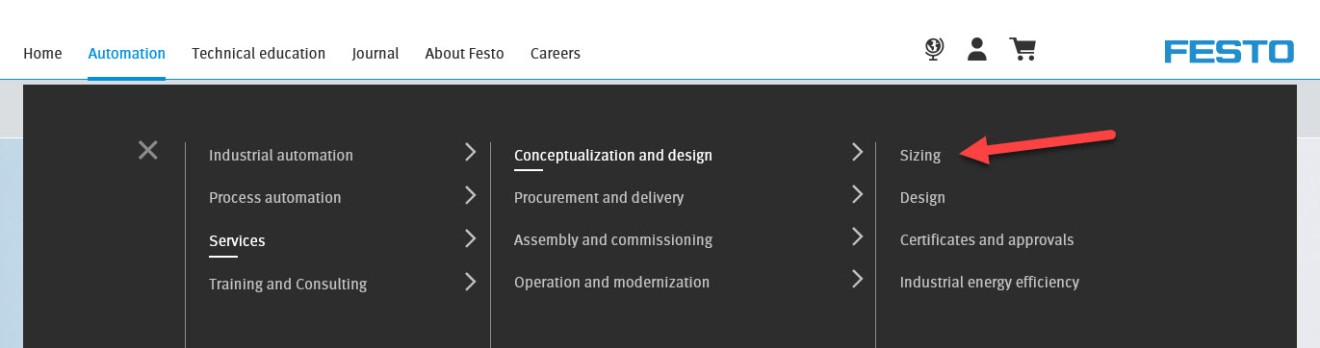

1. Click on ‘Automation’ > ‘Services’ > ‘Sizing’ to start the tool.

Click on ‘Automation’ > ‘Services’ > ‘Sizing’ to start the tool.

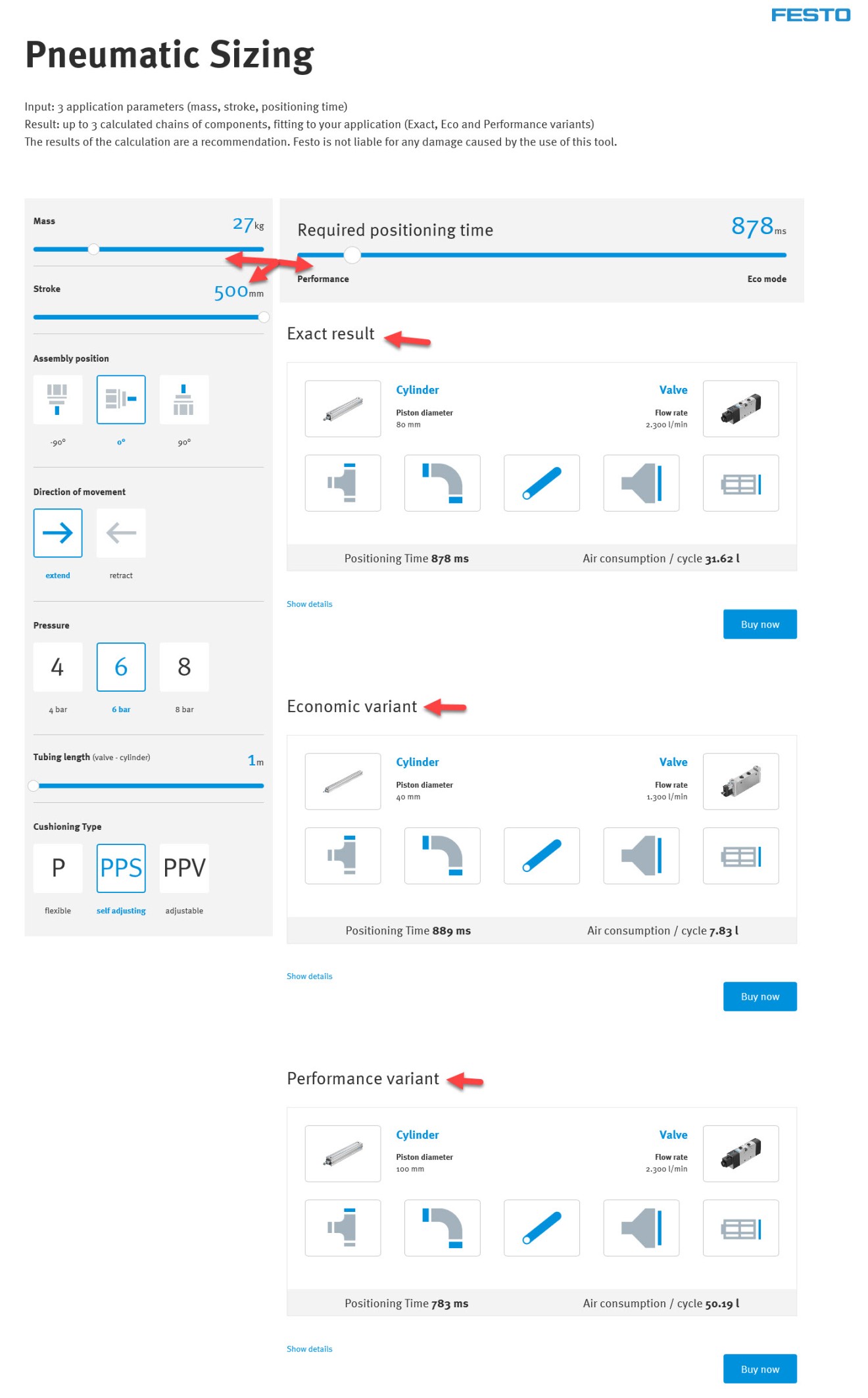

2. This is how it works: the tool adapts the three main input parameters based on your application needs (positioning time, mass, stroke) and provides you with three suggestions: the exact result, the economic variant and the performance variant.

How the pneumatic sizing tool works

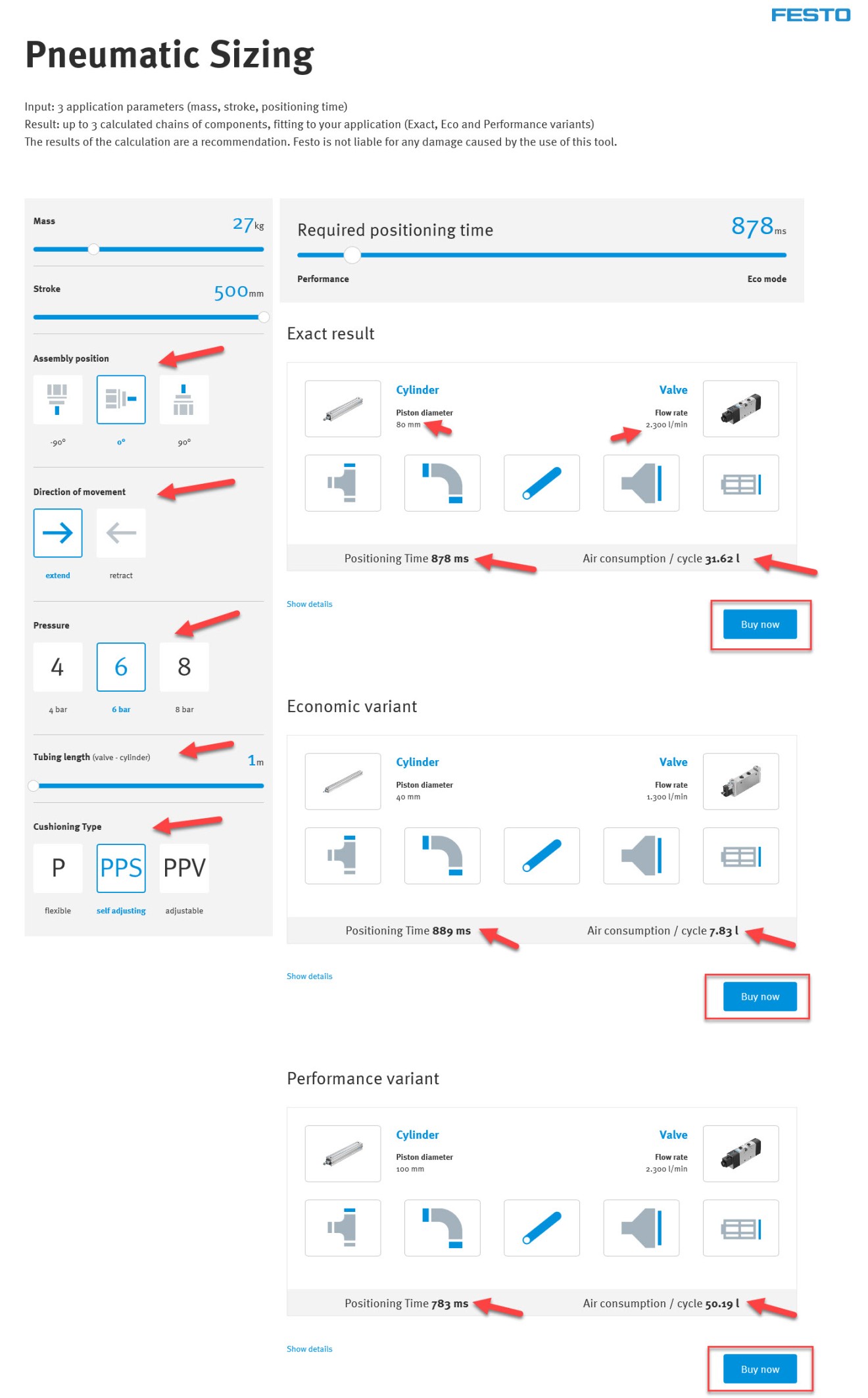

3. You can find more filter options on the left and additional information below each result. Simply click on ‘Buy now’ to add the full list of components to your basket.

More filter options in the pneumatic sizing tool
