Choosing the right robot gripper can look simple at first. A part needs to be picked, moved, and placed. So, the next step seems obvious: Compare grippers and select the one that fits. But that is where many end-of-arm tooling projects become harder than they need to be.
A robot gripper is not just a component at the end of a robot arm. It is the direct interface between the robot, the workpiece, and the production process. It affects gripping reliability, cycle time, positioning, energy use, integration effort, as well as commissioning.
That is why selecting a robot gripper should not start with the gripper itself. It should start with the application.
The goal is to define a gripping concept that is best for the workpiece, while considering motion, robot setup, system architecture, and production environment. Once these factors are clear, it becomes much easier to narrow down the right industrial robot gripper, vacuum solution, or complete end-of-arm tooling concept.
Here is a practical five-step process.
1. Define the actual application
Workpiece, motion, environment, tolerances, and flexibility requirements
2. Choose the gripping concept
Vacuum or mechanical gripper based on workpiece behavior and process stability
3. Define the system architecture
Centralized or decentralized vacuum, pneumatic or electric actuation, robot and control interfaces
4. Select the gripper type
Parallel, angle, radial, 3-finger, or adaptive gripper based on geometry and motion
5. Design and validate the contact concept
Gripper fingers, suction cups, tolerances, surface behavior, and real-condition testing
Before comparing gripping technologies, define what the robotic gripping system must do in practice.
Start with the workpiece. Look beyond nominal data and check the real production conditions:
Then look at the motion. Time is money! Gripping time needs to be as short as possible and as long as required by the application. Think ahead: You might want to speed up the process one day. Once you have gripped the workpiece, a stable grip during holding is not enough. The workpiece must remain secure while the robot accelerates, slows down, changes direction, and places the part.
This is often where the concept can start to pose challenges. If the robot motion profile, the cycle time, pick position, or placement requirement is unclear, the end-of-arm tooling design may become more complex than necessary. Teams may add extra force, extra weight, or an extra safety margin just to be on the safe side.
The main question is: How is the workpiece moved from pick to place, and what is the available cycle time to create a stable gripping movement?
Once the application is clear, the gripping principle can be evaluated with more confidence.
The first technical decision is usually whether to use a vacuum or mechanical gripper. This decision should always be driven by the application. No gripping technology is typically better than the other.
When vacuum gripping makes sense
Vacuum gripping is often suitable when:
Vacuum gripping can work well for panels, sheets, packaging, cartons, and many sensitive workpieces. But what matters most is the actual surface. Porosity, roughness, curvature, dust, oil, and leakage behavior can change the result in production.
Mechanical gripping is often suitable when:
Mechanical gripping can control the position and movement very effectively. The finger design, gripping force, contact surface, and tolerance compensation need to match the workpiece.
The key is not to ask, “Which gripper is best?”
Ask: Which gripping concept is best for the workpiece behavior, movement, and required process stability?
Once the gripping concept is clear, the next decision is system architecture. In this step, the robot gripper is connected to the full automation system.
For vacuum solutions, the architecture can include centralized or decentralized vacuum generation. Centralized vacuum generation is a good option when using several suction points. Decentralized vacuum generation can be useful when response time, local control, or modular gripper zones are important.
For mechanical grippers, the architecture often involves making a between pneumatic and electric actuation.
Pneumatic grippers can combine compact size and low weight with strong gripping force, depending on the design. They are often a good fit for robust, high-speed, or space-limited handling tasks, especially where compressed air is already available.
Electric grippers can be an appropriate choice for applications where controlled positioning, adjustable stroke, force control, or feedback is important. They can be useful when format changes happen often or when additional process data is needed for commissioning and diagnostics.
System architecture also includes:
This is where planning the end-of-arm tooling is a decision that affects the entire system. A robot end effector can look right as a component and still create problems if it does not fit in with the robot, control architecture, or production setup.
The leading question is: Which architecture fits the overall handling system?
If the concept points toward mechanical gripping, the next step is to select the gripper type. This is still not a detailed component selection. It is the decision that defines how the workpiece will be approached, held, moved, and placed.
Common robot gripper types include:
A parallel gripper can be suitable for rectangular parts, flat-sided components and applications where a straight gripping motion ensures stable holding. It is often used when access is easy and the workpiece can be gripped from two sides. Gripping time is also fast, depending on the stroke of the gripper jaw.
An angle gripper opens and closes around an angle. This can be useful when compact motion is needed and the opening movement fits the surrounding space.
A radial gripper provides a wider opening angle. This can be helpful when the fingers need to move away from interfering contours or when the gripper must approach the workpiece in a specific way.
A 3-finger gripper is often used for round or cylindrical workpieces. The centering movement permits stable positioning. Gripping time is also fast, depending on the stroke of the gripper jaw.

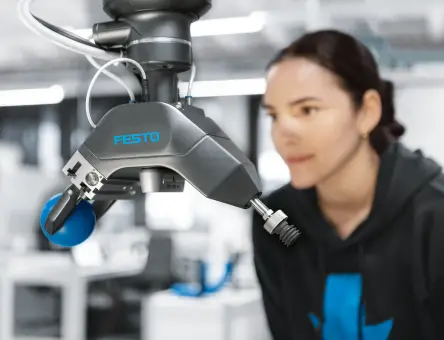

An adaptive gripper is an appropriate choice when workpiece shapes vary, or when the workpiece needs to be handled carefully. The gripper can adapt to different contours and support flexible handling tasks.
The right gripper type depends on geometry, accessibility, positioning, movement stability, available space, and future flexibility.
The key question is: How must the gripper approach, hold, move. and place the workpiece in the actual process?
The contact concept is where end-of-arm tooling design becomes specific. It is also where small choices can have a large effect on gripping reliability.
A robotic gripping system can be sized correctly on paper and still fail in production if the contact point does not match the actual workpiece surface. Dust, oil, curvature, porosity, or surface variation can change the result.
Validation helps reduce that risk.
Before moving onto detailed engineering steps, check the concept against real-life conditions:
Validation turns assumptions into confidence. It helps reduce redesign loops, commissioning delays, and oversizing. A test under real-life conditions is recommended.
Start with the application, not the gripper itself. Define the workpiece, motion, cycle time, environment, pick & place requirements, and tolerance variation. Then compare gripping concepts, system architecture, gripper type, and validation needs before going on to detailed product selection.
Neither is automatically better. Vacuum gripping can be a good choice for flat, sensitive or changing workpieces with suitable surface behavior. Mechanical gripping can be great for specific geometries, precise positioning, and dynamic movements. The application is the decisive factor.
Gripping reliability depends on workpiece geometry, surface behavior, robot motion, acceleration, tolerances, contact design, environmental conditions, and feedback. A concept should be checked under realistic conditions before implementation.
A parallel gripper is suitable for rectangular parts, a 3-finger gripper can be used for cylindrical parts, angle and radial grippers are great when space or opening requirements are critical, and adaptive grippers can support varying shapes or handle delicate workpieces.
Validate the end-of-arm tooling concept before starting with detailed engineering and implementation phases. Early validation helps check assumptions around motion, tolerances, surface conditions, feedback, energy use, and future flexibility.
