CP Lab

CP Lab is our professional and compact Industry 4.0 learning system, which includes all the technologies and components required for conveying in-depth knowledge of the Industrial Internet of Things.

CP Lab covers complex, software-related Industry 4.0 topics in mechatronics and automation technology and is thus an ideal basis for sound training in mechatronics, the practical training of technicians and a bachelor's degree in mechatronics.

The integrated learning system CP Lab is based on one or several I4.0/IIoT project workstations and can be expanded on a modular basis. It can be used as a stand-alone workstation or set up in various layouts using the pallet circulation system. And it can be combined with other learning systems, such as the CP Factory, too.

The actual course content, such as the networking of systems, material and information flows in complex systems or process planning, is taught using our CP application modules.

A CP Lab always consists of the same, systematically combined modules:

  • Basic functional module with control cabinet and conveyor for transporting workpieces on pallets
  • Touch panel for operating the CP Lab
  • Application module as an attachment
  • Switches and deflectors

Compact

Our compact Industry 4.0 learning system is ideal for teaching the fundamentals of control technology, for example.

Expandable

By combining individual CP Lab workstations in series, various pallet recirculation systems are created and adapted to requirements. In addition to the training content of the individual CP Lab workstation, the focus is on content such as layout design, process design, process optimisation, decentralised control technology, communication technology and system simulation.

Flexible

Thanks to the flexible arrangement of the individual CP Lab project workstations, different pallet circulation systems can be created. This means that the learning system can be perfectly adapted to your actual requirements.

We want to make it as easy as possible for you to integrate Industry 4.0 into your training initiatives. Our experts have therefore put together four different predefined CP Lab configurations based on their many years of experience in basic and further training for Industry 4.0: the CP Lab 400 complete systems. These configurations of typical and logically constructed CP Lab pallet transfer systems, including application modules and software components, represent useful processes, even for the smallest system.

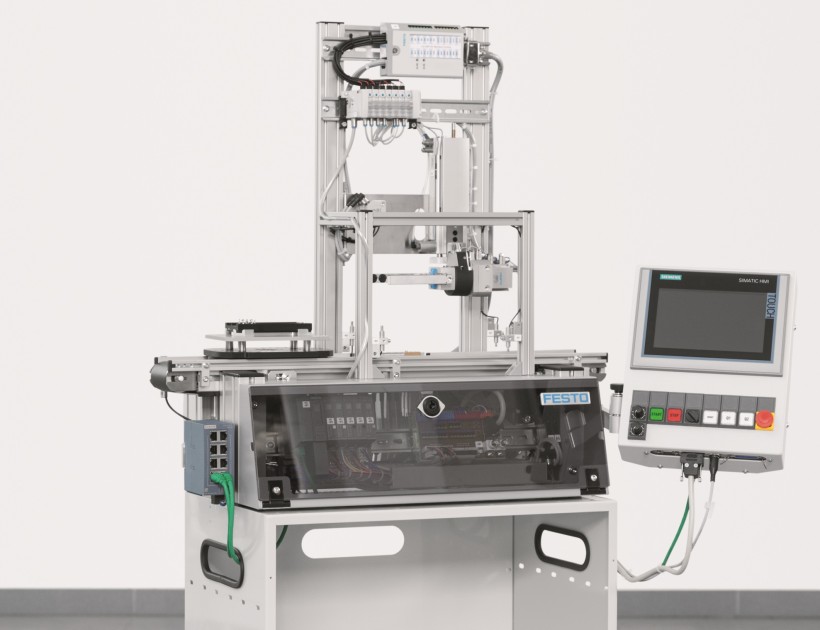

The CP Lab as a single workstation

Single work station

Learning-systems-Industry4.0-CP-Lab-3444c

Details

With the help of our compact training system for the Industrial Internet of Things, you can teach, for example, the fundamentals of control technology at a single workstation.

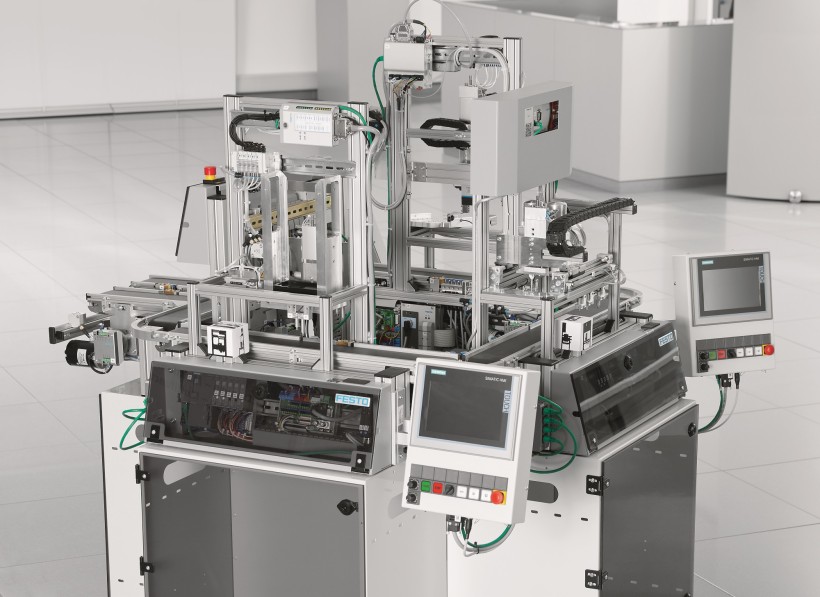

CP Lab as a pallet recirculating system

Recirculating system

Learning-systems-industry4.0-CP-Lab-pallet-recirculating-system

Details

Various pallet recirculating systems which are adapted to actual requirements can be created by lining up individual CP Lab workstations. Above and beyond the training content of the single CP Lab workstation, attention is focused on other content such as physical layout, process layout, process optimization, distributed control technology, communication technology and system simulation.
