The decision is driven by the application. Whether it's a centralized, decentralized or hybrid machine concept, modular or compact, we can provide the right valve terminal for all your requirements.
Some of the most important factors to consider when choosing the best valve terminal are:
- Machine concept
- Electrical installation concept
- Specific requirements or
- Requirements for a corresponding sector

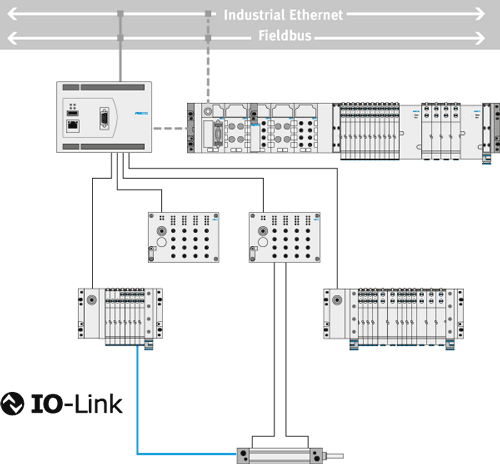

Installation concepts:
Concept:
Multiple drives and functions are combined and fully controlled by a large valve terminal. The valve terminal is mounted in an easily accessible position, e.g. on the front of the machine, on the machine rack or above. The pneumatic control loop should only a cover few metres.
Festo products:
Valve terminal VTSA type 44 in the catalogue
Valve terminal to ISO type 04 in the catalogue
Valve terminal MPA type 32 in the catalogue
