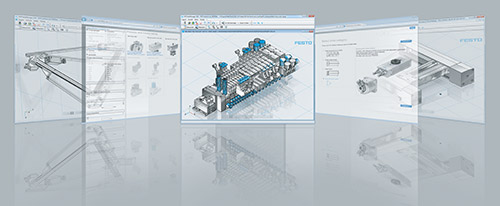

Use the software online and select the optimal pneumatic drive system. Then simulate it by a simple mouse click!
The design software can already be used online for some product groups.
Pneumatic drives – cylinders
Round cylinders (ISO 6432): DSNU, ESNU, DSN, ESN, CRDSNU
Profile/tie-rod cylinders (ISO 15552): DNC, DNCB, DNG, DNU, CDN, CRDNG
Compact cylinders (ISO21287): ADN, AEN
Up to 50% less space than standard cylinders as per ISO 15552 due to compact dimensions:
ADVU, AEVU, AEVUZ, AEVULQZ, ADVUL, ADVULQ
Minimal height due to small dimensions in relation to piston diameter:
ADVC, AEVC
Pneumatic drives – handling units
HGPT, HGPL, HGPP, HGPC, HGP, HGPM
HGP, HGDT
HGWM, HGW, HGR
HGDS
HPV
Shock absorbers:
Shock absorber selection
Valve terminals:
Simplified product configuration: assistant for simple selection of the suitable valve terminals based on their parameters
Valve terminal pre-selection
