Function integration safety
engineering for ISO valves
VSVA/valve terminal VTSA
Did you expect our champion to get
even better?
New: ISO size 3 makes the VTSA a one-of-a-
kind, universal, pneumatic solution package.
Suitable for new tasks in the automotive
industry, raw materials processing and heavy
machine building.
New: more versatile, compact pressurising
and exhausting with slow start-up
pressurisation.
New for the VTSA-F: valves and manifold
blocks in 4 sizes that can be combined into
cost-optimising control chains – no adaptor
required!
• ISO size 3 to 4,500 l/min flow rate, plus all
previously available functions
• Combinable with all valve sizes, from 02,
01, 1 to 2!
• VTSA-F: up to 30% more flow!
VTSA and CPX: watch unique, integrated
automation solutions, even in especially
harsh environments.
www.festo.co.uk/cpx
Valve terminals
VTSA/VTSA-F
Valve expansions

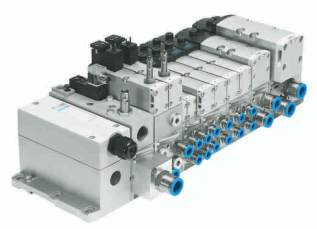

Set new standards by combining safety
engineering and economic efficiency –
with Safety@Festo.
Functional integration of comprehensive
electro-pneumatic safety functions on valve
manifolds and valve terminals in accordance
with EN 13849-1 saves you engineering and
installation time – not to mention money.
What is more, it can all be combined with the
Profisafe shut-off module on the CPX terminal
and the existing valve sizes 02, 01, 1, 2 and 3.
• Safe venting up to cat. 4, Pl e with safety
valve block VOFA-3/2, ISO Size 01 (26 mm)
• Safe reversing up to cat. 4, Pl e with press
safety valve block VOFA-5/2, ISO size 01
(26 mm)
• Protection against unexpected start-up to
cat. 3, Pl d with pilot air switching valve
VSVA/VTSA ISO size 01 (26 mm) or
02 (18 mm) with built-in sensor
• Safe stopping, holding, blocking a
movement up to cat. 2, PI e with 5/3-way
valves VSVA
• Pressure build-up and exhaust valve VABF
for controlled, safe pressurising up to
cat. 3, Pl d
Safety needs training too!
Find out how with our Didactic courses and
training programmes:
www.festo-didactic.com
Safety@Festo:
12

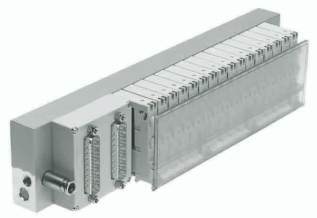

For when you need extremely reliable pilot
control of process valves.
Ideal for the semicon, photovoltaic, flat-panel
display, biotech/pharmaceutical and the
processing industry. Incredibly safe,
especially in gas boxes, as the conductive
tracks and plug connectors always run
separately and each coil has dual-pole
activation. Versatile electrical connection
technology included!
• Up to 48 3/2-way valves per valve terminal
• Space-optimised with 2 x 3/2-way valves
per valve position
• Configurable and with manifold rail
• Range of mounting options
Complete solutions for individual
sectors.
www.festo.com/solar
Valve terminal VTOC
30
