Basics Electrical engineering

Electrical engineering has an impact everywhere: Nowadays, a fundamental knowledge of electrical engineering and electronics is indispensable in many professions. Looking into the future, it becomes evident that the proportion of electrical and IT components in the value chain will significantly increase in almost all industries. In order to have well-trained professionals with extensive expertise in areas such as energy transition, electromobility, e-health, or smart living in the future, vocational training needs to address these topics.

A Seamless Approach

From the very beginning, we have placed a strong emphasis on continuity in our products and solutions. This means that we have developed a foundational system that can be seamlessly supplemented with compatible expansion sets according to specific needs. As a result, new topics that will be integrated into education in the coming years can be easily implemented. Additionally, the integration of digital systems is playing an increasingly significant role in forward-looking education.

By utilizing a knowledge platform closely linked to the technology, both practical and theoretical content, as well as software packages, can be efficiently managed. This provides the ideal digital extension to our systems, creating a seamless learning solution for electrical engineering education that aligns with your individual preferences and requirements.

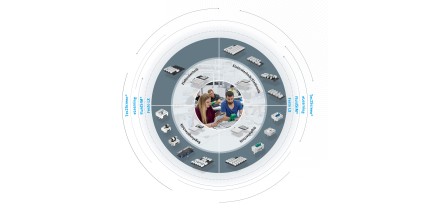

We start with the fundamentals

Regardless of the emphasis you place in your training - whether it's in the industry or in craftsmanship - electrical engineering and electronics are essential foundational knowledge.

Festo Didactic provides the suitable learning system for a successful education in electrical engineering.

The universal patch panel forms the basis

The Universal Patch Panel as a Foundation The Universal Patch Panel, with its 19mm grid, combined with the basic power supply, forms the basis of the system. This setup allows for topics such as direct current, alternating current, and semiconductor technology to be covered. It is also suitable for the component sets of digital and control technology.

A major advantage is that by using the Universal Patch Panel, all expansion sets can be delivered in a compact format, allowing for space-saving storage in your laboratories.

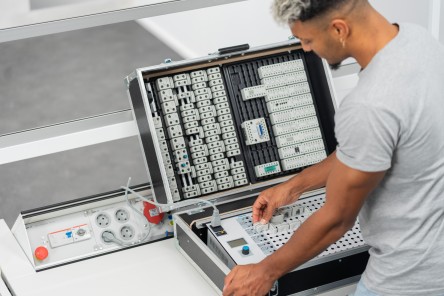

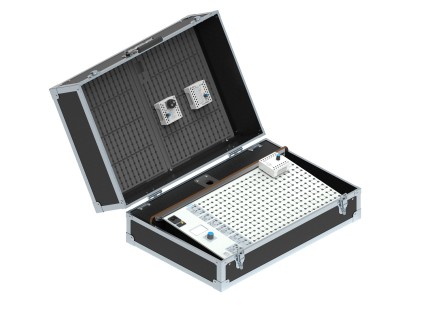

New! A4 storing case

Festo Didactics electrical engineering A4 case offers numerous advantages for storing the “Fundamentals of Electrical Engineering” training package.

It is characterized by its compact and robust design, which ensures safe and tidy storage of the training documents and materials. With a well thought-out interior layout, the case allows for clear organization of the components, making it easier to access the required parts during training.

In addition, the case is easy to transport, making it ideal for use in various training environments. The use of high-quality materials ensures durability and protects the contents from damage. Overall, the Electrical Engineering A4 case helps to increase the efficiency and quality of the learning process by providing a structured and protected environment for training.

Practical and robust case with handles for holding and transporting experimental systems.

In addition to the training system, up to 200 components / plug-in housings with 4 mm safety plugs can be stored in the lid of the case. Both the Edutrainer and the components can be used directly when installed.

Accessories such as multimeters, laboratory cables and mains cables can be stored in an additional compartment.

  • Accommodates A4 experiment systems with a width of up to 535 mm
  • (permissible device height of console housing 66/95mm)
  • Storage space for component set and extensions in the lid
  • Up to 200 slots
  • Lockable compartment for small parts, laboratory or mains cable
  • Dimensions: Approx. 450x 650 x 280 mm

Suitable for

  • TP1011 Fundamentals of electrical engineering and electronics and extension component sets
  • TP1012 Fundamentals of digital technology
  • TP1013 Fundamentals of control engineering
Contact us for an offer

Use of the electrical engineering A4 case

Structured storage

The case is designed to efficiently store various components and materials from the “Fundamentals of Electrical Engineering” training package. The compartments and holders are specially adapted to the individual components so that everything has its place.

Easy handling

The case has ergonomic handles and a lightweight design, making it easy to transport between different training locations or for storage in educational institutions.

Quick access

The organized interior allows users to quickly access the materials they need, improving the flow of lessons and saving time.

Protection of contents

The case protects the delicate components from impact, dust and moisture, ensuring the longevity of the materials.

Advantages of the electrical engineering A4 case

Optimal learning conditions

With structured storage and quick access to materials, users create ideal conditions for effective learning and experimentation.

Flexibility

The case can be easily transported, making it ideal for mobile training courses, workshops or outdoor use. This promotes the flexibility of training measures.

Promotion of independence

The clear organization and easy handling enable learners to work independently with the materials, which strengthens their personal responsibility and independence.

Integration into the curriculum

The electrical engineering A4 case can be seamlessly integrated into existing curricula and supports teachers in teaching practical content effectively.

Sustainability

The use of durable materials and the ability to store the contents safely promotes the sustainability of the teaching materials.

One for all: only one system on the lab bench in the classroom.

The basic power supply in our basic training packages TP 1010 and TP 1011 provides everything that learners need for successful learning in the field of electrical engineering and electronics. All experiments and tasks leading to a comprehensive basic knowledge can be covered with it. A wide range of adjustable voltage sources is available on board. Whether DC or AC voltages, even 3 phase, all conceivable supply voltages can be tapped here. An integrated frequency generator supplies sine, triangle or square wave voltages. All this can be easily set via a rotary pushbutton control. Via the integrated USB interface a PC can be connected to our PSURemute software and thus set and measure with the basic power supply. The software can also be used to control functions such as the variable DC output, waveform, frequency, amplitude and offset of the frequency generator in the power supply. Measured values and time histories can even be recorded and saved on the PC.Learn more

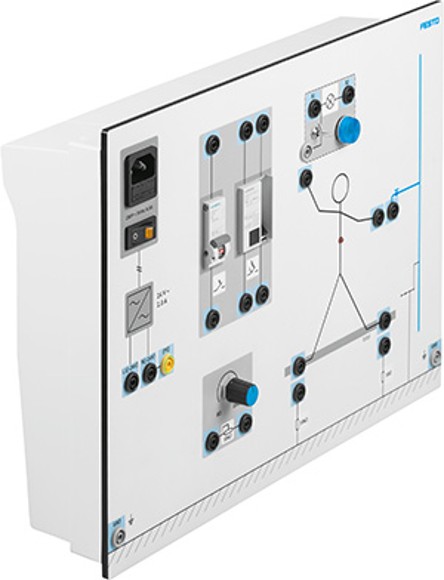

Basic power supply unit EduTrainer with integrated measuring module

The power supply for all experiments in basic electrical engineering/electronics.The integrated adjustable DC source is additionally supplemented by fixed voltages for digital and control engineering, AC and three-phase sources round off the possibilities.

The function generator offers different output forms in a wide frequency range and leaves nothing to be desired for basic training.

The integrated display provides detailed information about the current settings at any time. The operational readiness of the outputs is indicated by LEDs, all outputs are short-circuit and overload protected.In conjunction with the optional PC software, all settings can also be made from the PC via the integrated computer interface.

The integrated measuring module is used to record and display voltages and currents on the PC.

Technical data

  • Input voltage:
    1 AC/100 - 230 V (50 - 60 Hz)
  • Outputs:
    DC 0 - 25 V, 0.3 A
    DC +5 V, 0.2 A
    DC ±15 V, 0.8 A
    AC 2x 18 V, 100 mA
    3 AC 12 Vrms, 0.1 A, 0.1, 1, 50, 60 Hz
  • Function generator:
    Triangle, sine, square (symmetrical, V = 2), TTL
    Frequency 1 Hz - 100 kHz
    Amplitude 0 - 10
    VOffset -10 - +10 V
    Max. Current 0.1 A
  • All outputs are short circuit and overload protected
  • Output voltages are indicated by LEDs- Front panel: 133 x 297 mm
  • Desk case with rubber feet for use in A4 frame or on the desk
  • Connections for 2 mm and 4 mm safety plug
  • USB connection for PC

Recommendations for accessories, media and extensions

PSURemote Software (Oder no. 574179)

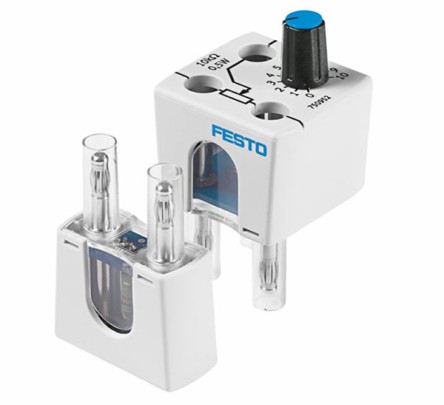

The plug-in modules are unique

Due to the innovative and elaborate design of the plug-in modules, a unique combination of safety, visibility of the electronic components used and haptics could be achieved.

Each component has a standard-compliant printing with component designation, value and switching symbol. At the same time, a viewing window is integrated into the housing, which allows a view of the electronic component used at any time.

The accessibility of the connections on both sides allows measurement in the circuit or even a simple parallel connection of components by simply plugging them together.

On the safe side!

The system is fully equipped with safety plugs and sockets and is therefore state of the art. This applies to all electrical connections - whether on the components or the devices. This means that the equipment set can be used in all laboratories, even if higher voltages are available. Better safe than sorry.

And if, contrary to expectations, an electronic component should ever break, it can even be easily repaired. If a component for one of your self-designed tasks is not available in one of the extensive parts sets, you simply build the appropriate component into an empty housing.

TP 1010: Fundamentals of Electrical Engineering for metalworking professions

Fundamentals of Electrical Engineering for metalworking professions

You can limit your training to DC and AC technology now and in the future? Then this equipment set with the small EduTrainer Fundamentals combiboard and reduced component range is the inexpensive alternative to the TP 1011.

Knowledge of circuits and basic circuits is also becoming increasingly important in mechanical professions. They are important for understanding many functions and processes in complex plants and systems.

The examples that the Fundamentals of Electrical Engineering for Metal Trades training package uses to teach the basics come from precisely this area. The learning objectives include electrical quantities and their relationships to each other. With the project-oriented tasks, the contents can be conveyed theoretically and in practical experiments in a clear manner. Measurements show correlations, promote understanding and thus deepen what has been learned.

The equipment set contains all components for carrying out the basic experiments in DC and AC technology. The clearly labeled slots of the storage plate provide order and structure.

Better safe than sorry

The system is fully equipped with safety plugs and sockets and is therefore state of the art.This applies to all electrical connections - whether on the components or on the combiboard. This means that the equipment set can be used in all laboratories, even if higher voltages are available. Safe is safe!

Learning content

  • Direct current technology
    • Voltage, current, resistance, conductance, Ohm's law, using measuring instruments, work and power, series and parallel connection, voltage divider, non-linear resistors, bridge circuit, voltage source
  • Alternating current technology
    • Electric field, induction, capacitor and coil in DC and AC circuits, series and parallel connection, active, reactive and apparent resistance, phase shift of current and voltage.

Order now: workbook

The tasks in the workbook deal with concrete, realistic projects, each with problem definition, boundary conditions and project assignment.

The workbook contains:

  • sample solutions
  • Didactic notes
  • USB stick with (or download access to) graphics
  • Worksheets for the learner

The worksheets support the learner in the information and planning phase, through execution to control and documentation.All tasks require the learner to perform, evaluate and document independently.

Recommendations for accessories, media and extensions

  • Cold device cable
  • PSURemote software (order no. 574179)
  • Digital technology component set (order no. 574193)
  • Fundamentals of direct current technology: Workbook
  • Fundamentals of AC Technology: Workbook

The most important components

  • Kombiboard Basics EduTrainer (order no. 571810)
  • Set of components for electrical engineering (order no. 8005374)
  • Safety jumper plug, 28 pieces, gray-black (order no. 571809)

TP 1011: Fundamentals of Electrical Engineering/Electronics

Training package with universal patch panel in the proven 19 mm grid. With the basic power supply unit, which among other things also offers a function generator, the universal patch panel forms the basis on which the component sets for digital and control engineering can also be used.With this component set, all basic experiments in DC, AC and semiconductor technology can be carried out and the basic circuits of electronics can be investigated. The storage plate with its clearly labeled slots provides order and structure.The equipment set variant TP 1011 M (see order no. 8029635) contains the basic power supply unit with integrated measuring module, the necessary measuring leads and adapters as well as the PSURemote software.
Translated with www.DeepL.com/Translator (free version)

Learning Contents

  • Direct current
  • Alternating current
  • Semiconductors
  • Basic circuits of electronics

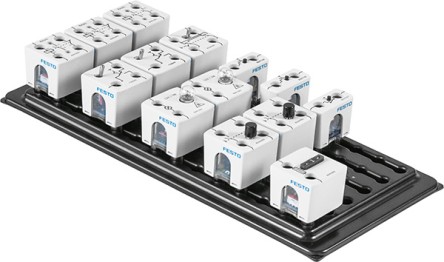

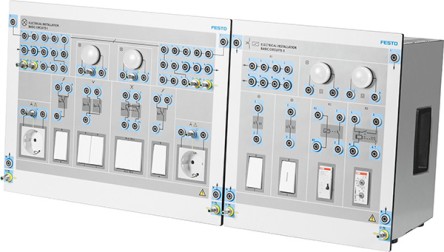

Extension set installation and relay technology TP 1022

Extension set installation and relay technology TP 1022

The TP 1022 component set expands the TP 1011 and TP 1011-M, Fundamentals of Electrical Engineering/Electronics, component sets to include components for electrical installation and relay technology.

The plug-in components of the extension component set provide an introduction to electrical installation and industrial control technology. The learners work with action-oriented learning scenarios in practical projects. This includes the planning, construction and testing of different basic circuits.

Symbols and values of the electrical components are printed on the tops of the components. The housings of the individual components can be opened to replace the electrical components in the event of a malfunction.The plug-in components fit on the EduTrainer plug-in panel in a 19 mm grid. The storage plate with labeled slots provides order and structure

Product features

  • Connections for 4 mm safety plugs on the top of the components
  • 4 mm safety technology for all connections
  • Ergonomically shaped, two-part plastic housing
  • Plug-in components with test ports on the top side
  • 19 mm plug-in grid
  • Supplied on a sturdy storage plate with labeling for clear assignment

Components included

  • 2x relay NO/NC
  • Relay NO/NO
  • 2x changeover switch
  • cross switch
  • 2x pushbutton two-pole NO/NC
  • 2x push button single pole NO
  • Pushbutton single pole NC
  • 2x lamp 12 V/3 W
  • Fuse 1 A

Learning content

  • Basic circuits of electrical installation (disconnection, series connection, alternating connection, cross connection)
  • Control circuits of relay technology

Extension set optoelectronics TP 1023

The component set expands the equipment set TP 1011 or TP 1011-M, Fundamentals of Electrical Engineering/Electronics, to include optoelectronic components.

The plug-in components of the extension component set provide an introduction to the structure, function and behavior of optoelectronic components and their applications in various circuits. The components enable the construction of fully functional circuits. Project-oriented exercises enable students to identify the properties and characteristics of optoelectronic components and to measure them.

User safety is guaranteed because the component set operates at low voltage and does not use laser technology.

The plug-in components fit on the EduTrainer plug-in panel in a 19 mm grid. The storage plate with labeled slots ensures order and structure

Components

  • Phototransistor
  • Light emitting diode (IR)
  • Photodiode (BPW 46)
  • Light emitting diode (HLMP)
  • Light emitting diode (BL)
  • Solar cells (AM 5610)
  • Lamp (12 V - 5 W)
  • LED lamp (15 V - 1 W5)
  • Isolation optocoupler (SFH618A)
  • Isolation optocoupler (MOC3051M)
  • Fiber optic cable

Learning content

  • Characteristics and curves of light-emitting diodes (LEDs)
  • Infrared LED- LED control (driving)
  • solar cells
  • photodiode
  • phototransistor
  • Optical signal transmission (by photodiode and phototransistor)
  • optocoupler
  • Fiber optic cable

Order now: workbook

The workbook contains:

  • Sample solutions
  • Didactic notes
  • Data carrier with PDF files
  • Worksheets for learners

The worksheets support the learners in the information and planning phase as well as in the execution, monitoring and documentation.All tasks require independent execution, evaluation and documentation by the learners.

Recommendations for accessories, media and extensions

  • Equipment set TP 1011: Fundamentals of electrical engineering/electronics (order no. 571780)
  • Equipment set TP 1011 M: Fundamentals of electrical engineering/electronics (with measuring module) (order no. 8029635)
  • Fundamentals of Optoelectronics: Workbook

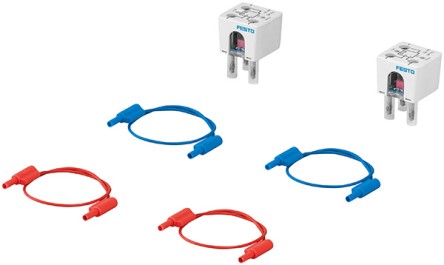

Expansion Component Set Analog Technology TP 1024

Components

The Analogue Technology set of components TP1024 extends the equipment sets TP 1011 and TP 1011-M. It provides information on the structure, function, and behaviour of operational amplifiers and their application in different circuits

Product features

  • Connectors for 4 mm safety plug on the top of the components
  • All connectors in 4 mm safety design
  • Ergonomically shaped, two-piece plastic housing
  • Components that can plugged on top of each other with measurement connectors on the top
  • 19 mm plug-in grid
  • Delivery on a stable storage panel with labelling to enable clear allocation

Components included:

  • 2x operational amplifier
  • 2x 2 mm safety laboratory cables, 300 mm, red
  • 2x 2 mm safety laboratory cables, 300 mm, blue Training content

Learning Content

  • No load difference
  • Output limits of the output voltage
  • Use of the output current limiter of an OPA
  • Limits of the usable input voltage common mode range
  • Mode of operation of a warning for low operating voltage
  • Mode of operation of a twilight switch
  • Principle of a timer with RC element
  • Structure and function of a window comparator
  • Measurement of the slew rate of an operational amplifier
  • Mode of operation and application of pulse-width modulation

Extension set automotive mechatronics TP 1025

Extension set automotive mechatronics TP 1025

The TP 1025 component set expands the TP 1011 and TP 1011-M, Fundamentals of Electrical Engineering/Electronics, component sets to include automotive mechatronics components.

With the plug-in components of the extension component set, learners build simple basic circuits specific to automotive engineering. Guided by action-oriented learning scenarios, learners acquire the ability to identify and eliminate malfunctions. The components can be manipulated in a targeted manner using built-in fault switches.

Symbols and values of the electrical components are printed on the top of the components. The housings of the individual components can be opened to replace the electrical components in the event of a malfunction.

The plug-in components fit on the EduTrainer plug-in panel in a 19 mm grid. The storage plate with labeled slots provides order and structure.All components are included in the FluidSIM 6 electrical engineering library. This library also includes extensive teaching material tailored to the first year of training for automotive mechatronics technicians.

Advantages

  • Connections for 4 mm safety plugs on the top of the components
  • 4 mm safety technology for all connections
  • Ergonomically shaped, two-part plastic housing
  • Plug-in components with test ports on top of each other
  • 19 mm plug-in grid
  • Supplied on a sturdy storage plate with labeling for clear assignment

Components included

  • Voltage regulator 12 V
  • 2x bulb 12 V/20 mA
  • Key switch
  • Clock generator
  • 2x lamp 12 V/3 W
  • 2x lamp LED 12 V
  • Relay NO 12 V
  • Fuse 1 A
  • Fuse 2 A
  • 2x switch

Learning content

  • Troubleshooting: Rear fog light, reverse light, instrument panel lighting, trailer lighting, low beam, tail and brake lights
  • Diagnosis: Instrument and dashboard lighting, fog lights, low beam, high beam and fog lights, right tail light, turn signal system.

Simulation software FLUIDSIM

The new version of FluidSIM 6 now offers special components, functions and teaching material for training courses in the automotive sector.

With version 6, we are responding to the needs of our customers who want to use FluidSIM for training in the automotive sector. FluidSIM 6 is an extension of the existing version for electrical engineering and offers additional functions and content tailored to the automotive sector:

  • Automotive components
  • Virtual measuring devices
  • Failure models and diagnostics
  • Extensive learning material
  • Numerous additional circuits tailored to TP1025

TP 1012: Fundamentals of Digital Technology

The perfect introduction to digital technology

The Fundamentals of Digital Technology training package offers the optimal introduction to the world of digital signal processing. Anyone who has learned and understood digital technology can easily and quickly get started with any programming language in automation technology.T

he fundamentals of digital technology include logical operations, signal flow and data formats. Also included in the curriculum are structured procedures for solving problems

Special features

  • The components of the training package are built with real logic gates. They allow realistic investigations of their behavior.
  • The ICs contained in the components are socketed and can be replaced in a few simple steps.
  • All parts of the equipment set are completely equipped with safety connectors.
  • The Kombiboard Digital and Control Technology EduTrainer supplied with this training package provides the necessary supply voltages for all experiments and also contains a square-wave generator with seven different output frequencies.
  • This Kombiboard EduTrainer can also be used as a plug-in panel for the components of the Control Engineering equipment set.

Components included

  • 1 Inverter
  • 2 AND
  • 2 OR
  • 1 NAND
  • 1 NOR
  • 1 XOR
  • 1 Hex switch and analog source 0 - 5 V
  • 1 LED bar display
  • 1 counter
  • 1 7-segment display
  • 1 RS flipflop
  • 2 JK flipflop
  • 2 shift registers
  • 1 full adder
  • 1 signal input

Learning content

  • Elementary logic blocks
  • Important symbols
  • Designing and optimizing logic circuits
  • Circuit Algebra
  • Conjunctive and disjunctive normal form
  • KV diagrams
  • Schmitt Trigger
  • hysteresis
  • Types of flip-flops
  • Application of flip-flops
  • Counting circuits
  • Converting and transferring data- shift registers
  • Data conversion
  • arithmetic circuits

Order now: workbook

In the tasks of the workbook, concrete, realistic projects are to be worked on in each case with problem definition, boundary conditions and project assignment.

The workbook contains:

  • sample solutions
  • Didactic notes
  • USB stick with (or download access to) graphics
  • Worksheets for the learner

The worksheets support the learner in the information and planning phase, through execution to control and documentation.All tasks require the learner to perform, evaluate and document independently

Recommendations for accessories, media and extensions

  • Cold-device cables
  • 2 mm safety lab cables, 60 pieces, red, blue and black (order no. 574206)
  • I/O level converter 5 V '-' 24 V (order no. 576622)
  • IC zero force socket (order no. 576623)
  • Component set control engineering (order no. 8023963)
  • Fundamentals of Digital Technology: Workbook

The most important components

  • EduTrainer digital and control technology combiboard (order no. 8023962)
  • Digital technology component set (order no. 574193)

TP 1013: Fundamentals of control engineering

Control engineering simple and easy to understand

The training package Fundamentals of Control Engineering offers a quick and easy-to-understand introduction to the subject of controllers and controlled systems.

Particularly important in this context are the basic concepts of control engineering, the behavior of various controllers and the structured analysis of requirements for controlled systems.In the projects, ways and means for the analysis and solution of control problems are shown and deepened by experiments.The equipment set allows the fast and flexible construction of different controllers and thus enables the simple investigation of their behavior in interaction with controlled systems of different orders.

All parts of the equipment set are completely equipped with safety connectors. The combiboard EduTrainer Digital and Control Technology included in the equipment set provides the necessary supply voltages for all experiments and also contains a square-wave generator with seven different output frequencies. This Kombiboard EduTrainer is also used in the Digital Technology training package.

Components

  • 1x 2 differential inputs with subtractor
  • 1x P-element
  • 1x I-element
  • 1x D-element
  • 1x summator with adjustable offset
  • 1x limiter with level adjustment of the output signals
  • 1x comparator with hysteresis and switching output
  • 2x controlled system

Learning content

  • Structure of a control loop
  • Step response, dynamic behavior
  • Standardize physical quantities
  • Bode diagram
  • Modeling of a circuit
  • Feedback and negative feedback
  • Two-point and three-point controllers
  • P, PI and PID controllers
  • Stable and unstable behavior
  • Controller gain
  • Delay behavior according to Ziegler and Nichols

Order now: workbook

In the tasks of the workbook, concrete, realistic projects are to be worked on in each case with problem definition, boundary conditions and project assignment.

The workbook contains:

  • sample solutions
  • Didactic notes
  • Multimedia CD-ROM with graphicsUSB stick with (or download access to) graphics
  • Worksheets for the learner

The worksheets support the learner in the information and planning phase, through execution to control and documentation.All tasks require the learner to perform, evaluate and document independently.

Recommendations for accessories, media and extensions

  • Cold-device cables
  • 2 mm safety laboratory cables, 60 pieces, red, blue and black (order no. 574206)
  • Tektronix TBS2074 digital storage oscilloscope (order no. 8068879)
  • Digital technology component set (order no. 574193)
  • Application module level control system (Order No. 8133444)
  • Application module speed control (order no. 8152965)
  • Linear positioning unit control
  • Application module (order no. 8133202)
  • Application module light and temperature control (order no. 8155732)
  • Fundamentals of Control Engineering: Workbook

The most important components

  • Combi board digital and control engineering EduTrainer (order no. 8023962)
  • Control engineering component set (order no. 8023963)

TP 1211: Basic principles of electrical installation

Description

The EduTrainer raises awareness and conveys the dangers of electric current. People are primarily at risk due to the magnitude of the current flowing through them. This device deals with the difference between a circuit breaker to protect the system and a residual current circuit breaker to protect people.

Learning objectives

  • Hazards due to electric current
  • Circuit breakers and protective conductors
  • RCD switches, circuit breakers and protective conductors
  • Design and function

TP 1211: Basic principles of electrical installation

Learning Goals

  • Learn the typical symbols used in electrical installations
  • Complete circuit diagrams
  • Make a bill of materials and describe each component
  • Build the circuit

Benefits

  • Complete function range
  • Easy, fast and reliable setup
  • Rear hood for use in A4 frame or as upright table unit
  • Graphics with division into didactic function blocks

TP 1211: Fundamentals of contact circuits

The basics of control technology

Contact-based control circuits continue to play an important role in modern automation technology. Simple control and automation tasks continue to be implemented using inexpensive relay technology.

With this equipment set and the associated workbooks, practical laboratory exercises and comprehensive example projects can be carried out. The training package teaches the structure, function and areas of application of the individual components as well as their use, e.g. in contact-based protective devices.

The selection of suitable switching elements and devices plays just as important a role as their proper application.Illustrative examples reinforce the fundamentals and functional principles of contact-based circuit technology taught in this training package.

Advantages

  • Compact design
  • Flexible due to the use of industrial components
  • Easily expandable
  • Can be used for MPS transfer belt and electrical machines
  • Bridge connectors for connecting the console housings improve clarity
  • Stable, angled screw-in sockets for contacting

The optionally available Systainer solution simplifies work, transport and storage. This facilitates the preparation and follow-up of lessons.

Learning content

  • Pushbuttons and switches
  • Normally open and normally closed
  • Jog mode
  • Latching
  • Pushbutton interlock
  • Multiple actuation points
  • Messages
  • Structure and function of a contactor
  • Electronic time relays
  • Overcurrent releases and motor protection switches
  • Designation of the devices used
  • Connection and testing of a three-phase socket
  • Main and control circuit
  • Contactor interlocking
  • Reversing contactor circuit
  • Star-delta starting
  • Reversing contactor circuit with automatic star-delta starting

Note

This training package is supplied in individual parts. The safety connections must be assembled by the user.

Order now: workbook

The tasks in the workbook contain practical projects, each with problem definition, boundary conditions and project assignment.

The workbook contains:

  • sample solutions
  • Didactic note
  • Multimedia CD-ROM with graphics
  • Worksheets for the learners

The worksheets support learners from the research and planning phase, through execution, to documentation.All tasks require learners to independently carry out, document, and evaluate the project.

Important notes

For the motor and charging set, we recommend using the motor (Order No.: 571875) which is designed for 400 V in delta connection and for 690 V in star connection and is suitable for the star-delta motor starter. The overload relay supplied is dimensioned accordingly.

Recommendations for accessories, media and extensions

  • Protective conductor connection cables with special socket, 14 pieces (order no. 8067503)
  • Safety jumper plugs, 36 pieces, red, blue, gray, gray-blue (order no. 8092677)
  • Amprobe PRM-6-EUR rotating field and motor direction indicator (order no. 8081205)
  • 4 mm safety laboratory cables, 58 pieces, brown, black, gray, blue with gray plugs (order no. 8092669)
  • Electrical Machines
  • Fundamentals of contact circuits: Workbook
  • Softstarter EduTrainer (order no. 8121090)
  • Softstarter (order no. 8126037)
  • Power supply unit 24 V EduTrainer (order no. 571813)
  • Motor circuit breaker

The most important components

  • EduTrainer contactor board (order no. 571814)
  • Contactor set motor technology (order no. 571816)
  • EduTrainer operating and signaling unit (order no. 571815)

Our electrical engineering posters

Oder the poster set electrical engineering for a nominal fee of 30€.

This includes one poster each on the basics of electrical engineering, digital technology and control engineering.

Order the poster now
