Digital technology

The Fundamentals of Digital Technology training package offers the optimal introduction to the world of digital signal processing. Anyone who has learned and understood digital technology can easily and quickly get started with any programming language in automation technology.T

he fundamentals of digital technology include logical operations, signal flow and data formats. Also included in the curriculum are structured procedures for solving problems

• The components of the training package are built with real logic gates. They allow realistic investigations of their behavior.
• The ICs contained in the components are socketed and can be replaced in a few simple steps.
• All parts of the equipment set are completely equipped with safety connectors.
• The Kombiboard Digital and Control Technology EduTrainer supplied with this training package provides the necessary supply voltages for all experiments and also contains a square-wave generator with seven different output frequencies.
• This Kombiboard EduTrainer can also be used as a plug-in panel for the components of the Control Engineering equipment set.

• 1 Inverter
• 2 AND
• 2 OR
• 1 NAND
• 1 NOR
• 1 XOR
• 1 Hex switch and analog source 0 - 5 V
• 1 LED bar display
• 1 counter
• 1 7-segment display
• 1 RS flipflop
• 2 JK flipflop
• 2 shift registers
• 1 full adder
• 1 signal input

• Elementary logic blocks
• Important symbols
• Designing and optimizing logic circuits
• Circuit Algebra
• Conjunctive and disjunctive normal form
• KV diagrams
• Schmitt Trigger
• hysteresis
• Types of flip-flops
• Application of flip-flops
• Counting circuits
• Converting and transferring data- shift registers
• Data conversion
• arithmetic circuits

In the tasks of the workbook, concrete, realistic projects are to be worked on in each case with problem definition, boundary conditions and project assignment.

The workbook contains:

• sample solutions
• Didactic notes
• USB stick with (or download access to) graphics
• Worksheets for the learner

The worksheets support the learner in the information and planning phase, through execution to control and documentation.All tasks require the learner to perform, evaluate and document independently

• Cold-device cables
• 2 mm safety lab cables, 60 pieces, red, blue and black (order no. 574206)
• I/O level converter 5 V '-' 24 V (order no. 576622)
• IC zero force socket (order no. 576623)
• Component set control engineering (order no. 8023963)
• Fundamentals of Digital Technology: Workbook

• EduTrainer digital and control technology combiboard (order no. 8023962)
• Digital technology component set (order no. 574193)

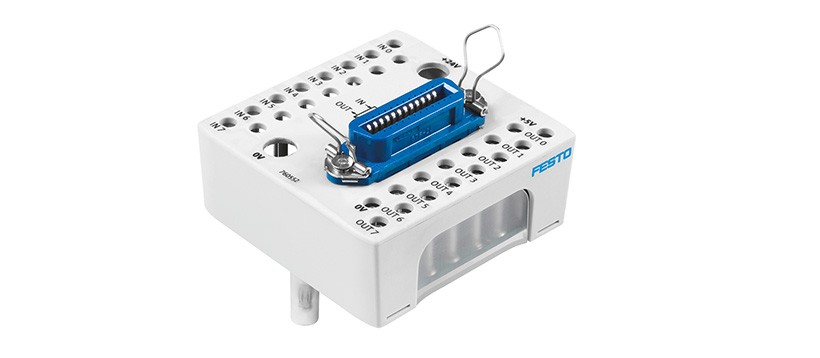

I/O level converter used to interface digital inputs and outputs from digital technology or microcontrollers to functional models.

• Power supply voltage DC/24V via 4mm safety plug
• 8 inputs 5V via 2mm safety plug
• 8 outputs 5V via 2mm safety plug
• SysLink connection with 8 inputs and 8 outputs 24V
• Current capacity per DC/24V output 300mA, short-circuit and overload protected
• Sum of output currents: max. 2A

The I/O level converter is used for signal conversion between 5V and 24V, both ways, between microcontrollers and functional modules. It is suitable for digital and analog inputs and outputs.

• Power supply voltage 24V DC via 4mm safety plug
• 4 digital inputs 5V via 2mm safety plug
• 4 digital outputs 5V via 2mm safety plug
• 2 analog inputs 10V via 2mm safety plug
• 1 analog output 10V via 2mm safety plug
• Sub-D HD15 connection

High-quality IC socket for tool-free adaptation of ICs, compatible with digital technology.

• 16 pins in a 2.54mm pitch
• Tool-free installation with clamping lever
• Contacting with 2mm safety plug
