Zaytran Grippers

Patented Synchronous Technology The force and synchronizing double helix are independent systems. The double helix works only to center the part (providing precision to ±0.025 mm (±0.0010") over the life of the gripper). All of the gripping force is provided by two pistons. The independence of the force and synchronization systems provides precision over the life of the parallel gripper, and also allow for long strokes

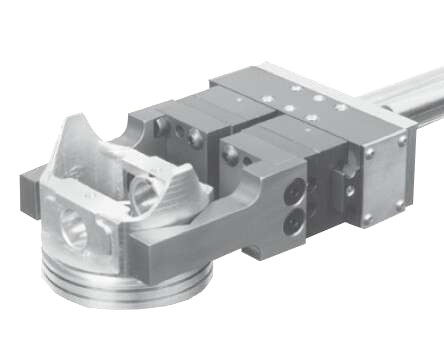

MAGNUM® parallel grippers

Welding Environments to Class One Clean Room Parallel Grippers

Compact design
Available in two materials
Aluminum for standard and harsh environments
PET for Clean Rooms, up to Class 1
Purge port to provide positive or vacuum pressure

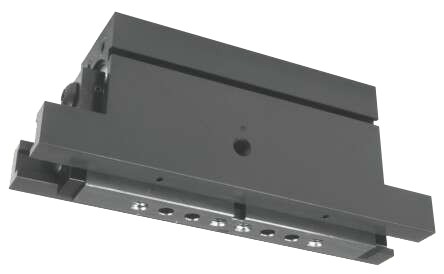

GPAL parallel grippers

Long stroke grippers - Twice the Force, Half the Mass

Suitable for harshest environments
Light Weight
Integrated Sensor slot
Fail-safe available (accessory): pneumatically locks jaws to retain part
Purge port to provide positive or vacuum pressure

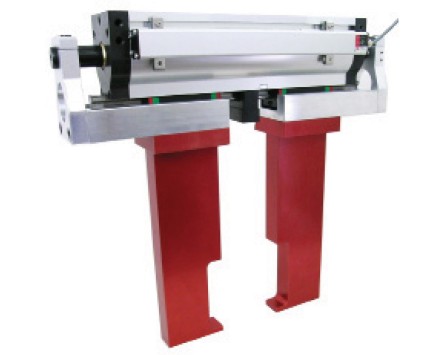

XRAY® long stroke grippers

Handle big gripper jobs with tremendous torque and force capability

For very large objects
Very High Torque and Force capability
Stroke Lengths up to 350mm
Fail-safe available (POB version): mechanically locks helix and jaws ro retain part
