Swivel module DSM-…-HD
with heavy-duty bearing
Picking and placing is now more compact
with swivelling and gripping in
one
.
Highly efficient and powerful:
the swivel/gripper unit HGDS. Swivelling and
gripping can be controlled separately and
individually. The HGDS is much more compact
than the individual components, making it
ideal for small, simple pick & place units.
• Torques up to 2.5 Nm,
max. swivel frequency 2 Hz
• Freely adjustable swivel angle up to 210°
• Total gripping force up to 200 N at max.
14 mm total stroke
• Minimum opening and closing times
of 40 ms
More handling systems.
03
Swivel/gripper unit HGDS

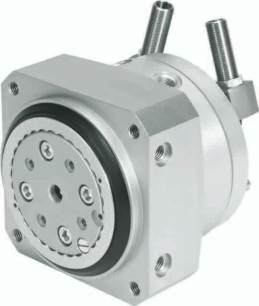

Top fit: the DSM-…-HD puts heavy loads
away with no effort at all.
Up to 8 times the performance of its standard
cousins for infinite swivelling up to 270°.
And it still completely maintains its high
running precision of 0.1° for up to
10 million cycles, thanks to its shock
absorbers and adjustable fixed stop.
• Max. radial force: 1,800 N
• Preloaded, precise bearing
with no backlash
• Max. torque at 6 bar: 40 Nm
The DSM-T speeds up your rotation tasks –
even with high loads.
The tandem vane doubles the torque, while
the adjustable cushioning with fixed stop
ensures maximum energy absorption and
precision. The DSM-T-B is a powerhouse that
doesn't lose any of its power and precision,
even after 10 million cycles.
• Torque at 6 bar up to 80 Nm
• Versatile, stepless swivel angle up to 270°
with a repetition accuracy of 0.1°
• Simple precision adjustment of end
positions via the cushioning components
Swivel module DSM-T-B
with tandem vanes
For more detailed information, visit our products page:
www.festo.co.uk
