Simplified Motion Series

Simplified Motion Series

The Simplified Motion Series consists of different electromechanical components together with a simple and application-optimised combination of motor drive and servo drive, the so-called integrated drive. This solution doesn’t require an external servo drive. The electric alternative for very simple movement and positioning tasks between two mechanical end positions doesn’t require the usual commissioning process for traditional electric drive systems, which can often be quite complex. It also offers special motion characteristics such as gently cushioned travel into the end position or simplified press-fitting and clamping functions.

Commissioning

This is quick and easy and can be done without any software, computer or other accessories, because all parameters can be set manually directly on the drive. Simplified Motion Series is then connected directly to the controller, either via digital I/O (DIO) or IO-Link®, both of which are integrated as standard.

Highlights of the Simplified Motion Series

  • Simplified functionality for simple movements
  • A variety of movements thanks to different mechanical systems
  • Integrated products eliminate the need for a control cabinet
  • Quick and easy commissioning without software
  • No special expertise required for commissioning
  • Digital I/O (DIO) or IO-Link® integrated as standard

Functions and configuration of the Simplified Motion Series

Simplified Motion Series basic profile

Beweging tussen twee eindposities

Simplified Motion Series enhanced motion profile

Krachtgeregelde persfunctie

Gemakkelijke en flexibele inbedrijfstelling

Gebruik de online selecietool om de juiste keuze voor uw vraagstuk te maken.

Configureer online!

Simplified Motion Series basic functions

Parameters handmatig instellen via bedieningspaneel of PC (via IO-Link):

  • Snelheid en kracht
  • Referentie eind positie en persbeweging
  • Eindposities

Extra, uitgebreide functies beschikbaar via IO-Link®:

  • Op afstand instellen van bewegingsparameters
  • Kopieren en opslaan van parameter voor overdracht tussen component en computer om op identiek component in te laden
  • Uitlezen van bewegings- en serviceparameters

Tijdens in bedrijf stelling kunnen alle relevante parameters direct op de geïntegreerde motor ingesteld worden. De parameters kunnen gemakkelijk en intuitief ingesteld worden zonder gecompliceerde instructies:

  • Snelheid in- en uitgaande slag
  • Kracht voor uitgaande slag
  • Begin- en eindpositie
  • Positie start klem/pers beweging
  • Handmatige start

Eenvoudige aansluiting via M12 connectoren

  • Voeding (4-pin): voeding voor de motor
  • Stuursignalen (8-pin): stuursignalen voor in- en uitgaande beweging en feedback signalen voor eindpunten of IO-Link verbinding

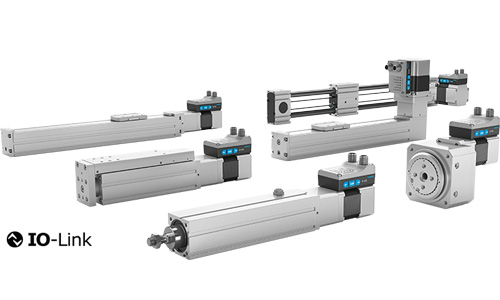

Product overview

Spindle and toothed belt axis ELGS

Spindle and toothed belt axis ELGS

Extremely compact and cost-effective spindle axis ELGS-BS with precise, resilient recirculating ball bearing guide for the slide and powerful ball screw.

  • Three sizes for a payload of up to 20 kg at a max. stroke of 800 mm

Extremely cost-effective and durable toothed belt axis ELGS-TB with precise, resilient recirculating ball bearing guide for the slide in a compact design, especially as a main axis in handling systems.

  • Two sizes for up to 1.3 m/s at a max. stroke of 2,000 mm

Common features:

  • Permanently fitted stainless steel cover strip protects the internal guide and the spindle or toothed belt
  • Unique “one-size-down” assembly system for mounting with each other and with the mini slide EGSS
  • Optional: vacuum connection to minimise the emissions of particles from the axis into the system
  • The motor can be rotated 4 x 90°, its position can be changed at any time

View animation:Door openerliftingsortingtransferring

Mini slide EGSS

Mini slide EGSS

Cost-effective and resilient EGSS with smooth spindle operation for vertical Z movements or guided linear individual movements in every mounting position.

The internal linear guide absorbs lateral forces and provides very good resistance to torsion at high torques.

  • Three sizes with a max. stroke of 200 mm
  • The electric rotary drive ERMS can be mounted directly without the need for adapters
  • Optional: ducted compressed air compensation prevents particles or moisture from entering and particles leaking into the environment
  • Unique “one-size-down” assembly system for mounting with the spindle and toothed belt axes ELGS-BS/-TB.
  • The motor can be rotated 4 x 90°, its position can be changed at any time

View animation:Liftingpress-fitting

Electric cylinder EPCE

Electric cylinder EPCE

The EPCE is an electric cylinder for short strokes and cycle times, offering a minimal zero stroke and excellent value for money. It is ideal for use in testing and inspection systems as well as for labelling, in simple centring tasks and for aligning workpieces.

  • Perfect for all users looking for an electric short-stroke cylinder optimised for speed and space
  • A wide range of piston rod, mounting and cable outlet variants
  • Optimised product design for maximum component density
Electric cylinder EPCS

Electric cylinder EPCS

The EPCS is suitable for single linear movements in every mounting position and its smoothly running ball screw allows precise and rapid positioning. As an extremely cost-effective complete solution, the electric cylinder is ideal for applications such as positioning or clamping, distributing, sorting or ejecting, and in handling systems as a simple Z-axis.

  • Three sizes with a max. stroke of 500 mm
  • Simple and cost-effective position sensing via proximity sensor, flexible, reliable and quick to mount, can be retrofitted or repositioned at any time
  • Optional: ducted compressed air compensation prevents particles or moisture from entering and particles leaking into the environment
  • Unique “one-size-down” assembly system for mounting with the spindle and toothed belt axes ELGS-BS/-TB
  • The motor can be rotated 4 x 90°, its position can be changed at any time

View animation:Door openerliftingpositioningsortingtransferring

Toothed belt axis ELGE

ELGE

Bouwgrootte 35
Slag tot 800 mm
Belasting tot 2,8 Kg
Snelheid tot 1100 mm/s
Duwkracht tot 50 N

Rotary drive ERMS

Rotary drive ERMS

As a cost-effective solution package, the rotary drive ERMS is ideal for simple swivel tasks as well as for increased mechanical loads. It has a rotary plate with sturdy, precise and backlash-free ball bearings so it can absorb lateral forces and torques.

  • Two sizes, each with a swivel angle of 90° and 180°
  • It offers a sealed hollow shaft for the integrated through-feed for cables or tubing
  • With the standardised mounting interface it can be connected directly to the electric mini slides EGSL, EGSC and EGSS.

View animation:Stoppingtransferring

Vergelijking met andere aandrijfvormen

Voor een eenvoudige punt naar punt beweging is zowel standaard pneumatiek als de simplified motion serie een optie. Bekijk op deze pagina de verschillen om te bepalen welke techniek het beste bij uw applicatie past.

vergelijking type aandrijvingen

Vergelijking met standaard pneumatiek



Standaard pneumatiek  Simplified Motion Series
Energie bron Perslucht 24V DC
Functie Punt naar punt beweging Punt naar punt beweging
Handmatig instellen Via pneumatische accessoires  Direct op device
Besturing  Door middel van digitale IO  Door middel van digitale IO vergelijkbaar met pneumatiek. Alternatief via IO-Link
Toepassingsbereik

Geschikt voor diverse toepassingen in de industrie
Groot krachtbereik
Hoge snelheden mogelijk

Geschikt voor schone en droge omgeving
Beperkt krachtbereik (max. 750N)
Beperkt snelheidsbereik (max. 0,25m/s)
