What is pressure dew point?

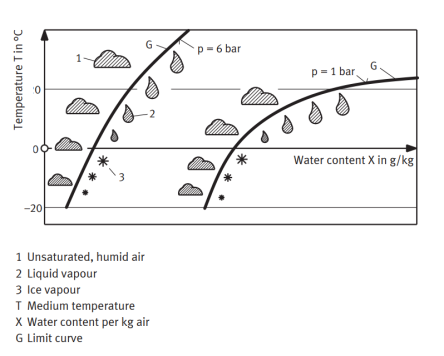

Pressure dew point is the temperature to which compressed air can cool, at its actual working pressure, before the water vapour inside it starts to condense.

At that point, the air is saturated. If the temperature drops further, the excess moisture separates from the air as condensate.

A simple way to think about it:

• A high pressure dew point means condensation can happen sooner
• A low pressure dew point means the air can cool further before water forms

For example, compressed air with a pressure dew point of 3 °C can cool down to 3 °C before condensation begins. If the air temperature drops below that, water can form in the system.

That makes pressure dew point a practical moisture limit for compressed air systems.

Why pressure dew point matters in pneumatic systems

What pressure dew point should you aim for?

The right pressure dew point depends on the conditions around the application, not just on the compressed air system itself.

Check the application conditions first

Start by checking three factors:

• The lowest temperature the compressed air may reach
• How sensitive the application is to moisture
• Whether a specific compressed air quality class applies

These factors define how dry the compressed air needs to be. A standard pneumatic application in a controlled indoor environment will not have the same requirement as an outdoor installation or a sensitive production process.

Use the 10 °C safety margin

As a practical rule, the pressure dew point should be at least 10 °C lower than the lowest expected ambient temperature around the system. In technical contexts, this temperature difference is often written as 10 K.

For example, if the lowest expected temperature near the application is 13 °C, the pressure dew point should be 3 °C or lower. This margin helps prevent condensate from forming when temperatures fluctuate.

Adjust the target for critical applications

For many standard pneumatic applications, a pressure dew point of around 3 °C is sufficient.

Applications in colder areas, outdoor installations, sensitive production environments or processes with strict air quality requirements may need much lower values such as -20 °C, -40 °C or -70 °C.

Aim for the right value, not the lowest value

The goal is not always to achieve the lowest possible pressure dew point. The goal is to define a value that keeps the air dry enough for the application and stable enough for the operating environment.

How to lower pressure dew point

Lowering pressure dew point means removing more water vapour from the compressed air before it reaches the application. The right method depends on how dry the air must be, where the risk appears in the system and how the compressed air network is designed.

Start with the system conditions

Before choosing a dryer, check the basic compressed air preparation setup. The system should match the required air purity, flow rate, working pressure, ambient temperature range and distance between air preparation and point of use.

A dryer cannot compensate for every design issue. If the flow rate is too high, the dryer is undersized or the preparation unit sits too far from the critical application, moisture problems can still appear downstream.

Choose the right dryer technology

Three dryer technologies are commonly used to lower pressure dew point:

• Refrigeration dryers cool compressed air so water condenses and can be separated. They are often used for general applications where a pressure dew point of around 3 °C is sufficient.
• Membrane dryers remove water vapour through hollow fibres and are useful for compact point-of-use drying near sensitive equipment.
• Adsorption dryers use a drying agent to bind water vapour and are used when very low pressure dew points, such as -40 °C or -70 °C, are required.

Central or decentralised drying?

The location of the dryer can affect how reliably the target pressure dew point is maintained.

Central drying treats compressed air before it enters the wider network. This works well when the whole system needs the same air quality and the distribution network is well controlled.

Decentralised drying treats the air closer to the machine or point of use. This can be useful when only selected applications need drier air, or when long pipe runs, cold areas or local temperature changes increase condensation risk. Also, the impact on pressure drop, thus the effecienct of the system, can be optimized by implement decentral drying.

Many systems use both. Central drying provides the base level. Local drying protects critical points.

How maintenance affects pressure dew point

A system can be correctly designed and still drift out of range.

Filters become clogged. Condensate drains fail. Drying media loses performance. Pressure drops increase. Ambient conditions change after a machine is moved or a line is extended.

That is why pressure dew point should not only be treated as a design value. It should also be checked as part of routine compressed air quality monitoring.

Regular checks should include:

• Filter condition
• Condensate drain function
• Pressure drop across preparation units
• Dryer performance
• Drying media condition
• Air quality at critical points of use

These checks help catch moisture risk before it becomes a production problem.

Quick checklist: how to reduce pressure dew point

Use this checklist to assess where improvement may be needed:

• Identify the lowest temperature the compressed air may reach
• Set the target pressure dew point at least 10 °C below that temperature
• Check whether the current dryer can achieve the target value
• Confirm that flow rate and pressure match the dryer specification
• Inspect filters and condensate drains
• Review long pipe runs and cold areas
• Add local drying for sensitive points of use
• Consider adsorption drying for very low pressure dew point requirements
• Monitor compressed air quality regularly

Conclusion

Pressure dew point is a practical way to judge whether compressed air can stay dry under real operating conditions. When the target value matches the application, the environment and the air quality requirement, the system is better protected against condensate, corrosion and unstable performance.
