Flow/pressure
port 4
Flow/pressure
port 2

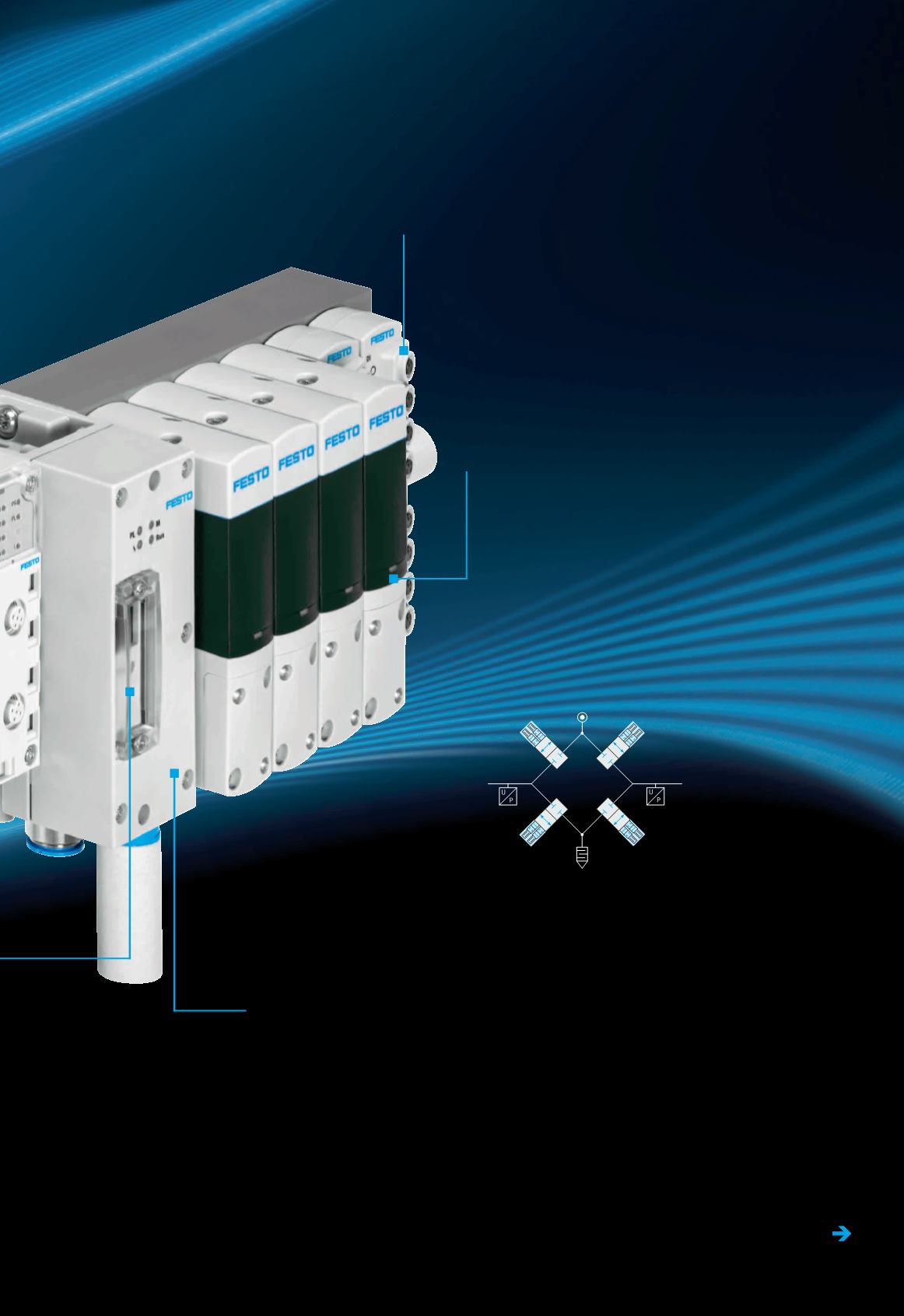

Controller with motion apps
The core of the Motion Terminal offers
decentralised intelligence and rapid
control. From here, the motion apps
are assigned to the individual valves.
Valve
The app-controlled valve comprises
four 2/2-way diaphragm poppet
valves, which are controlled by four
piezo pilot valves. The integrated stroke
and pressure sensors provide optimal
control and transparent condition
monitoring. The interplay between
the components and the bridge circuit
design, which enables independent
pressurisation and venting, are what
make the valve so flexible.
Bridge circuit
in the valve
Input module
Up to 16 analogue or digital
inputs for direct control
applications such as Soft Stop.
