beddynamically. Two laser scannersat
bothendsof the train constantlysense
the tunnel profile. Thesystem controller
analyses the informationabout the
contoursof thenext 20metresection in
fractionsof asecondand forwards the
control pulses to the individual suction
nozzles. Themoving cleaningunits
therefore remain closeenough to the
tunnelwalls toeffectively removedirt at
all times. If the laser scannersdetect
obstaclessuchassignsor electronic
switchboxes, the tunnel cleaning train
simply retracts the respectivesuction
armsat the right time. Thisgigantic
cleaningsystem isoperatedby just two
people–a locomotivedriver and the
machineoperator. Thanks tovideo
camerasandeightmonitorsper driver’s
cab, they constantlykeepaneyeon the
most important areasof their
machine. Dependingon the typeof
application, there is room for up toseven
people ineachof the twodriver’s cabs.
Servopneumatics for increasedsafety
Thequickandsafemovement of the
suctionnozzlesandsuction feet is the
workof the latest servopneumatics from
Festo. Thehydraulic solutionsusedby
Schörling in thepast havebeen replaced
bypneumatics for theveryfirst time in the
latestmodel of the tunnel cleaning train.
“Servopneumaticsare just cleaner and
safer,”explainsProjectManagerDaniel
Eberhardt. “There isnocontaminationdue
topossible leaks in thehydraulicsystems.”
Thescopeof the Festo componentsused
extends fromair preparationwith two
serviceunit combinationsMSB6 right up
to16standard cylindersDNCI-63with
integrateddisplacement encoder,
including16position controllersCPX-

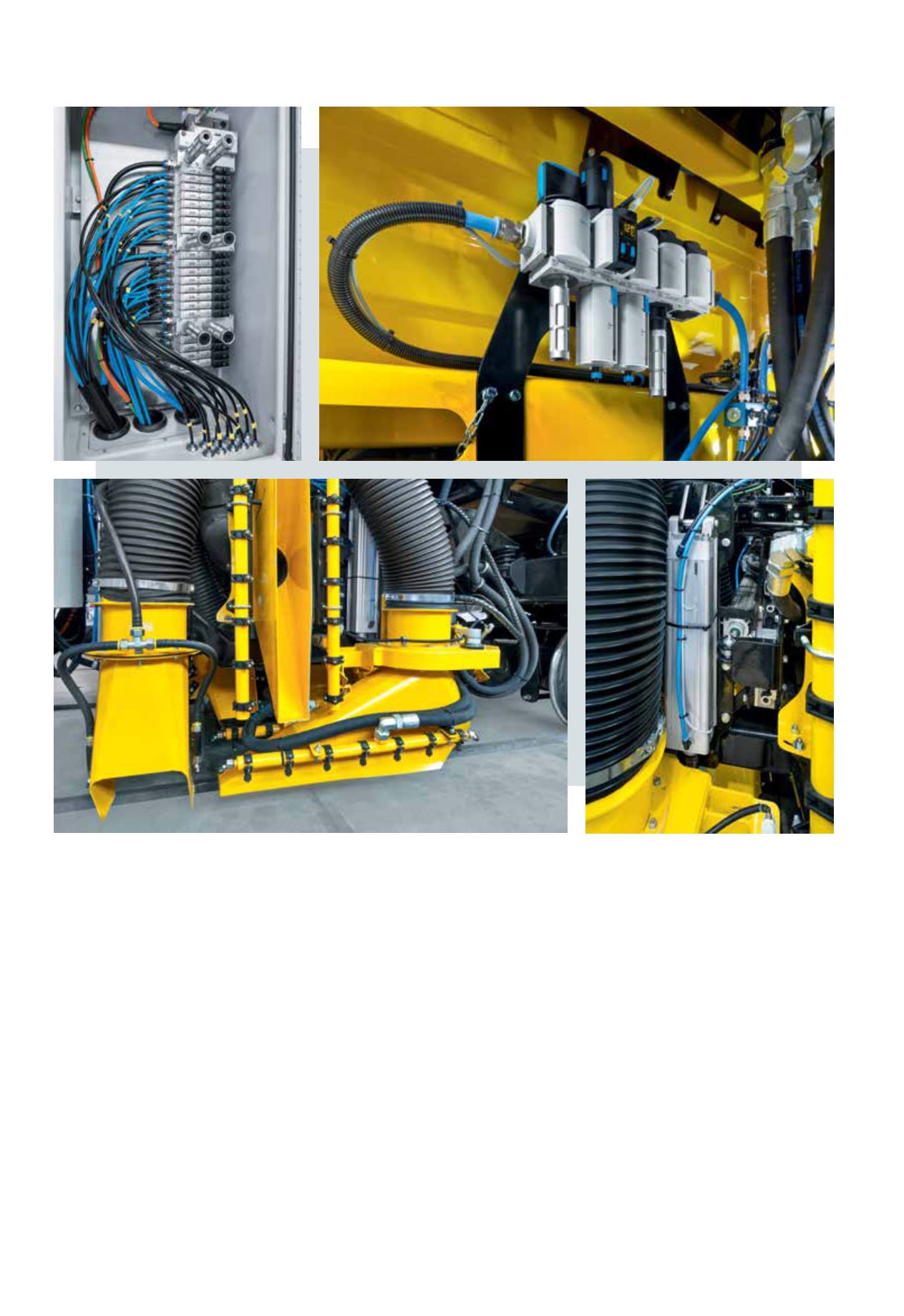

(A)Maximum impact inasmall space:
Valve terminalVTSAsavesspace thanks
to its compact design.
(B) Cleanliness for a longer service life:
Serviceunit combinationMSB6ensures
that thepneumatic components continue
to runsmoothly for a long time.
(C)Quick, safe, clean:
The cleaningunit
with itsmovablesuctionnozzlesand
suction feet has three fans ineach train
half, eachwithsuctionof 6m³/s.
(D)A total of 16standard cylinders
DNCI-63with integrateddisplacement
encoder position thesuctionnozzles
and feet quicklyandaccurately.
(A)
(B)
(C)
(D)
